Toyota CH-R Service Manual: System Diagram

Parts Location

PARTS LOCATION ILLUSTRATION *A w/ Double Locking System - - *1 NO. 1 ENGINE ROOM RELAY BLOCK - DOOR DBL/L FUSE ...

System Description

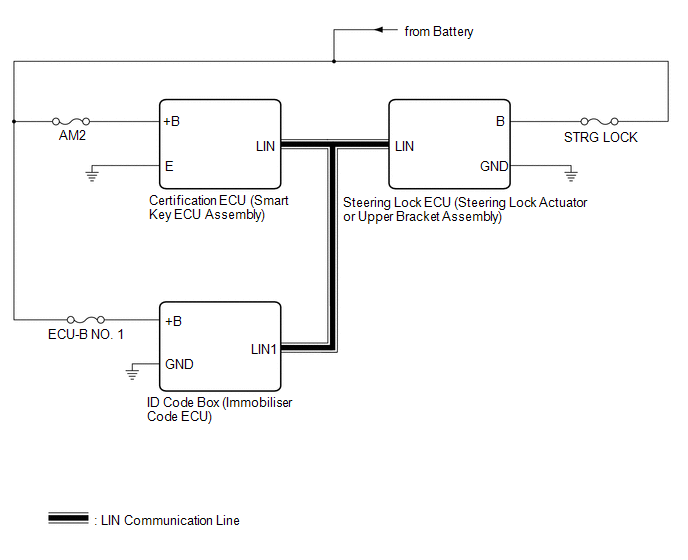

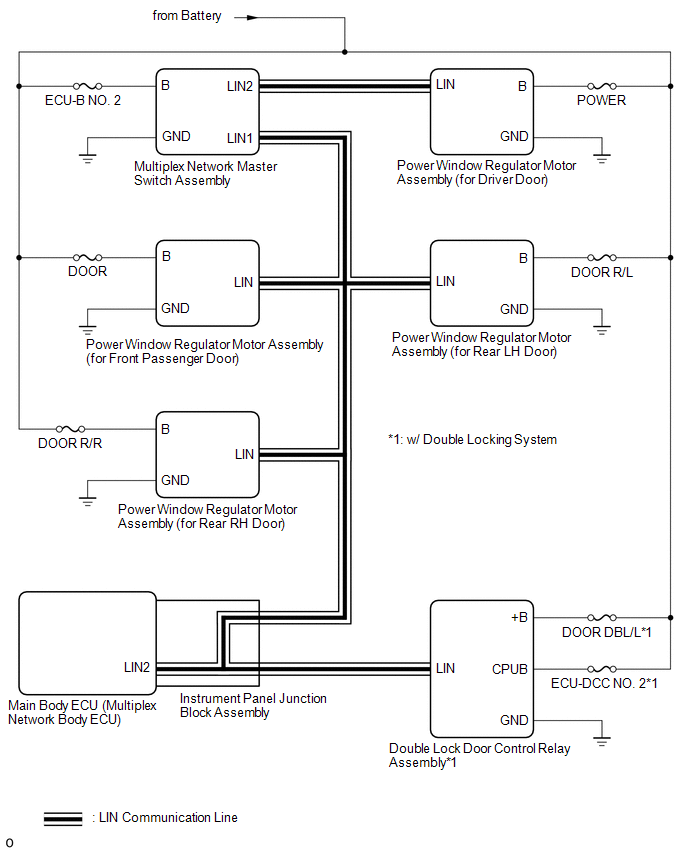

SYSTEM DESCRIPTION LIN COMMUNICATION SYSTEM DESCRIPTION The LIN communication system is used for communication between the components in the tables below. If communication cannot be performed thro ...
