Toyota CH-R Service Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the blind spot monitor buzzer removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Disconnect cable from negative battery terminal |
Memorize steering angle neutral point |
Lane departure alert system (w/ Steering Control) |
|
|
Pre-collision System |
|||
|
Initialize back door lock |
Initialize back door lock |
|
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
.png)
Click here
.gif)
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Click here
5. REMOVE FUSE BOX OPENING COVER
Click here
6. REMOVE BLIND SPOT MONITOR BUZZER
|

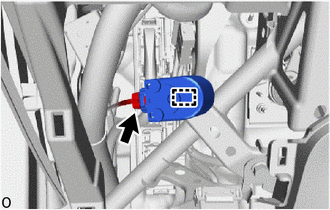

(a) Using a clip remover, disengage the clamp. |
|
(b) Disconnect the connector to remove the blind spot monitor buzzer.
Components
COMPONENTS
ILLUSTRATION
*1
BLIND SPOT MONITOR BUZZER
*2
COWL SIDE TRIM BOARD LH
*3
FRONT DOOR SCUFF PLATE LH
*4
...
Installation
INSTALLATION
PROCEDURE
1. INSTALL BLIND SPOT MONITOR BUZZER
(a) Connect the connector.
(b) Engage the clamp to install the blind spot monitor buzzer.
2. INSTALL FUSE BOX OPENING COVER
Click here ...
