DESCRIPTION
This DTC is stored when the blind spot monitor sensor LH (Master) detects a short to ground in the outer rear view mirror indicator LH.
|
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
|---|---|---|---|
|
C1AB2 |
Short to GND in Outer Mirror Indicator(Master) |
Both of the following conditions are met:
|
|

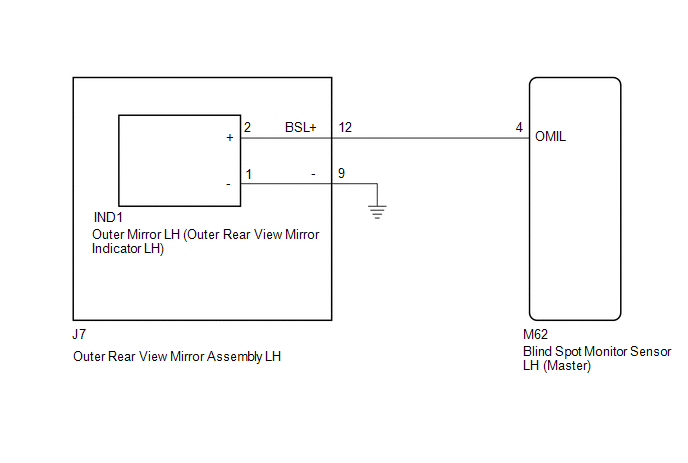

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
When checking for DTCs, make sure that the blind spot monitor system is turned on.
PROCEDURE
|
1. |
CHECK DTC |
(a) Turn the ignition switch off.
(b) Turn the ignition switch to ON.
(c) Recheck for DTCs and check if the same DTC is output again.
Body Electrical > Blind Spot Monitor Master > Trouble CodesOK:
No DTCs are output.
| OK | |
USE SIMULATION METHOD TO CHECK
|
|
|
2. |
CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (MASTER) - OUTER REAR VIEW MIRROR ASSEMBLY LH) |
(a) Disconnect the M62 blind spot monitor sensor LH (Master) connector.
(b) Disconnect the J7 outer rear view mirror assembly LH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Always |
|---|---|---|
|
M62-4 (OMIL) - Body ground |
Always |
10 kΩ or higher |
| NG | |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
3. |
INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH |
(a) Disconnect the IND1 outer mirror LH connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
J7-12 (BSL+) - Body ground |
Always |
10 kΩ or higher |
| NG | |
REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH |
|
|
4. |
INSPECT OUTER MIRROR LH |
(a) Remove the outer mirror LH.
Click here
(b) Inspect the outer rear view mirror indicator LH on the outer mirror LH.
Click here
| OK | |
REPLACE BLIND SPOT MONITOR SENSOR LH (MASTER) |
| NG | |
REPLACE OUTER MIRROR LH |
