Toyota CH-R Service Manual: Components

COMPONENTS

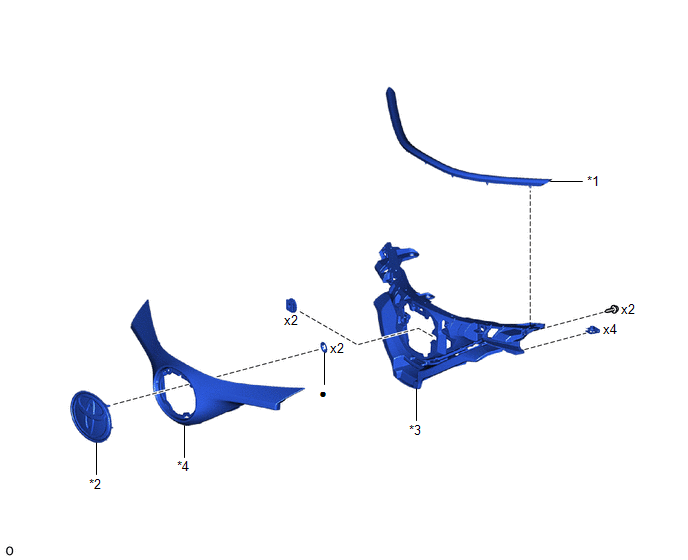

ILLUSTRATION

*1

RADIATOR GRILLE

-

-

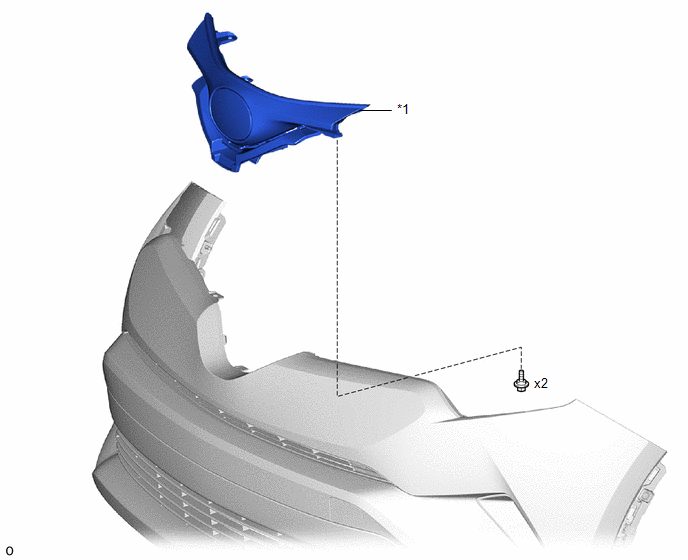

ILLUSTRATION

*1

HOOD TO RADIATOR GRILLE SEAL

*2

RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

*3

RADIATOR INSIDE GRILLE

*4

RADIATOR GRILLE

Non-reusable part

-

-

    Radiator Grille
    ...

    Removal
    REMOVAL PROCEDURE 1. REMOVE FRONT BUMPER ASSEMBLY (w/o Toyota Safety Sense) Click here 2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Toyota Safety Sense) Click here 3. REMOVE RADIA ...
