Toyota CH-R Service Manual: On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
(a) Check the front washer operation.
|
(1) Connect a voltmeter positive (+) lead to terminal F36-7 (WF) and a negative (-) lead to terminal F36-4 (EW). |
|
(2) Turn the ignition switch to ON.
(3) Turn the washer switch on and off, and check the voltage between terminals F36-7 (WF) and F36-4 (EW).
OK:

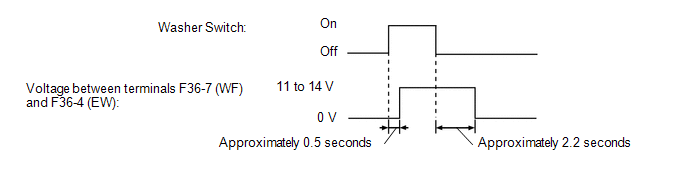

Voltage changes as shown in the illustration.
If the result is not as specified, replace the windshield wiper switch assembly.
Components
COMPONENTS
ILLUSTRATION
*1
LOWER STEERING COLUMN COVER
*2
UPPER STEERING COLUMN COVER
*3
WINDSHIELD WIPER SWITCH ASSEMBLY
...
Inspection
INSPECTION
PROCEDURE
1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Front Wiper Switch
...
