Door lock switches

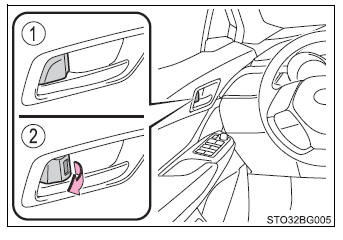

Inside lock buttons
The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.
Locking the doors from the outside without a key
1. Move the inside lock button to the lock position.
2. Close the door.
Vehicles without a smart key system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the engine switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
