Toyota CH-R Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear seat airbag removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effects / Inoperative when not performed

Link

Disconnect cable from negative battery terminal

Initialize back door lock

Power door lock control system

Memorize steering angle neutral point

Lane departure alert system (w/ Steering Control)

Pre-collision system

HINT:

  • Use the same procedure for the RH side and LH sides.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. REMOVE REAR SEAT SIDE GARNISH

Click here

3. REMOVE REAR SEAT AIRBAG

CAUTION:

When storing the rear seat airbag, keep the airbag deployment side facing upward.

Deployment Side

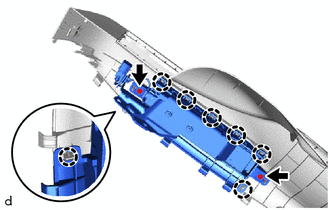

(a) Remove the 2 screws.

(b) Disengage the claws to remove the rear seat airbag.

NOTICE:

Do not damage the deployment surface of the rear seat airbag.

    On-vehicle Inspection
    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: Be sure to correctly follow the removal and installation procedures for the rear seat airbags. PROCEDURE 1. INSPECT REAR SEAT AIRBAG (for ...

    Disposal
    DISPOSAL CAUTION / NOTICE / HINT CAUTION: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre ...
