Toyota CH-R Service Manual: Disposal

DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the RH side.

PROCEDURE

1. PRECAUTION

CAUTION:

  • An airbag or pretensioner may be accidentally deployed by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
  • Never dispose of an rear seat airbag with an undeployed airbag.
  • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors where it will not disturb nearby residents.
  • When deploying the airbag, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical noise.
  • When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the rear seat airbag.
  • The rear seat airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • Use gloves and safety glasses when handling a rear seat airbag with a deployed airbag.
  • Do not apply water, etc. to a rear seat airbag with a deployed airbag.
  • Always wash your hands with water after completing the operation.

HINT:

When scrapping a vehicle equipped with an SRS or disposing of the rear seat airbag, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the service department of TOYOTA MOTOR SALES, U.S.A., INC.

2. DISPOSE OF REAR SEAT AIRBAG (When Installed to Vehicle)

NOTICE:

  • When disposing of a rear seat airbag, never use the customer's vehicle to deploy the airbag.
  • Be sure to perform the following procedure when deploying the airbag.

HINT:

Prepare a battery as the power source to deploy the airbag.

(a) Check the function of SST.

Click here

SST: 09082-00700

(b) Refer to Precaution.

Click here

(c) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(d) Remove the rear pillar cover.

Click here

(e) Disconnect the rear seat airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

(1) Slide the slider to release the lock, and then disconnect the connector.

*a

Slider

-

-

Slide

-

-

(f) Install SST.

CAUTION:

Check that there is no looseness in the rear seat airbag.

(1) After connecting the following SST to each other, connect them to the rear seat airbag.

SST: 09082-00700

SST: 09082-00750

NOTICE:

To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

(2) Move SST at least 10 m (32.8 ft.) away from the front side window of the vehicle.

*a

Battery

*b

10 m (32.8 ft.) or more

(3) Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.

NOTICE:

Take care not to damage the SST wire harness.

(4) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

(g) Deploy the airbag.

(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Press the SST activation switch to deploy the airbag.

CAUTION:

  • Before deployment, make sure that no one is inside or near the vehicle.
  • The rear seat airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • Use gloves and safety glasses when handling a rear seat airbag with a deployed airbag.
  • Do not apply water, etc. to a rear seat airbag with a deployed airbag.
  • Always wash your hands with water after completing the operation.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

3. DISPOSE OF REAR SEAT AIRBAG (When not Installed to Vehicle)

NOTICE:

Be sure to perform the following procedure when deploying the airbag.

HINT:

Prepare a 12 V battery as the power source to deploy the airbag.

(a) Check the function of SST.

Click here

SST: 09082-00700

(b) Remove the rear seat airbag.

Click here

CAUTION:

  • Before removing the rear seat airbag wait at least 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) battery terminal.

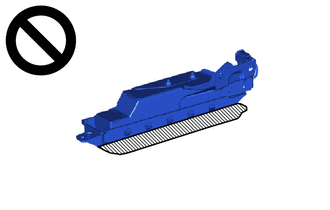

  • When storing the rear seat airbag keep the airbag deployment side facing upward.

    Deployment Side

(c) Using braided wire, tie down the rear seat airbag to an unneeded tire.

*a

Wire Diameter

*b

Stripped Wire Cross Sectional Area

Wire:

Stripped Wire Cross Sectional Area

1.25 mm2 (0.0019 in.2) or more

CAUTION:

If the wire is too thin or an alternative object is used to tie down the rear seat airbag, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT:

To calculate the cross sectional area of the stripped wire:

Cross sectional area = 3.14 x (Diameter)2 / 4

(1) Position the rear seat airbag inside the tire with the airbag deployment side facing inward.

Minimum tire size:

Width

185 mm (7.28 in.)

Inner diameter

360 mm (1.18 ft.)

*a

Inner Diameter

*b

Width

CAUTION:

  • Make sure that the wires are tight. If there is slack in the wires, the rear seat airbag may break loose when the airbag is deployed.
  • Always tie down the rear seat airbag with the airbag deployment side facing inside the tire as shown in the illustration.

    Deployment Side

NOTICE:

The tire may be damaged by the airbag deployment, so use an unneeded tire.

(d) Install SST.

(1) Connect the SST connector to the rear seat airbag connector.

SST: 09082-00750

(e) Place the tires.

(1) Place at least 2 tires under the tire to which the rear seat airbag is tied.

Minimum tire size:

Width

185 mm (7.28 in.)

Inner diameter

360 mm (1.18 ft.)

NOTICE:

Do not place the SST connector under the tire because it could be damaged.

*a

Tires (2 or more)

*b

Inner Diameter

*c

Width

(2) Place at least 2 tires onto the tire to which the rear seat airbag is tied. The top tire should have a wheel installed.

NOTICE:

The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

(3) Tie the tires together with 2 wires.

CAUTION:

Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

(f) Install SST.

(1) Connect the SST connector.

SST: 09082-00700

NOTICE:

To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

*a

Battery

*b

10 m (32.8 ft.) or more

(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

(g) Deploy the airbag.

(1) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the rear seat airbag is tied.

(3) Press the SST activation switch to deploy the airbag.

CAUTION:

Before deployment, make sure that no one is near the airbag.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

(h) Dispose of the rear seat airbag.

CAUTION:

  • The rear seat airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • Use gloves and safety glasses when handling a rear seat airbag with a deployed airbag.
  • Do not apply water, etc. to a rear seat airbag with a deployed airbag.
  • Always wash your hands with water after completing the operation.

(1) Remove the rear seat airbag from the tire.

(2) Place the rear seat airbag in a plastic bag, tie it tightly, and dispose of it according to local regulations.
