Toyota CH-R Service Manual: Components

COMPONENTS

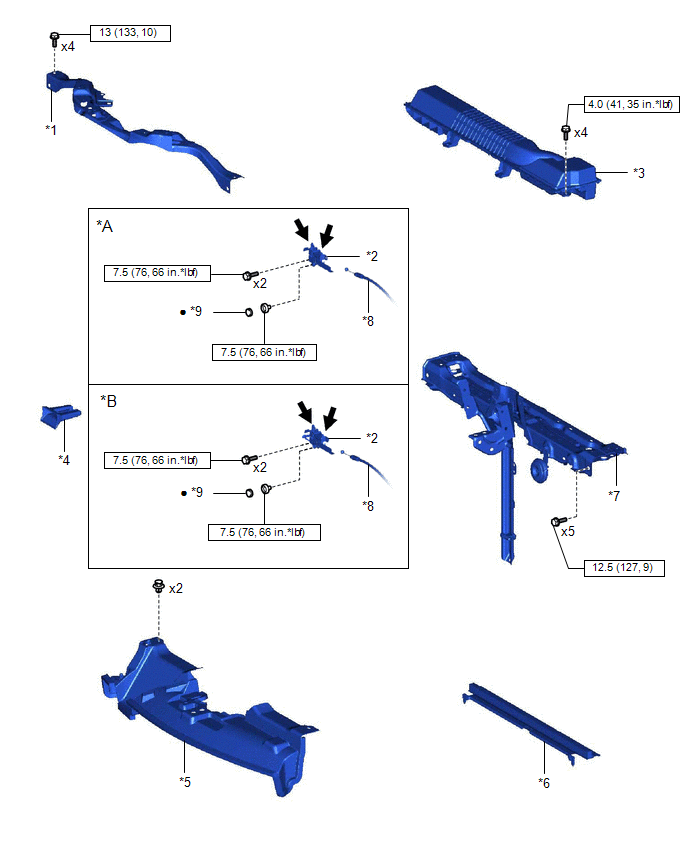

ILLUSTRATION

*A

w/o Engine Hood Courtesy Switch

*B

w/ Engine Hood Courtesy Switch

*1

FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

*2

HOOD LOCK ASSEMBLY

*3

NO. 1 AIR CLEANER INLET

*4

NO. 1 RADIATOR GRILLE RETAINER

*5

NO. 1 RADIATOR TO SUPPORT SEAL

*6

NO. 2 RADIATOR AIR GUIDE

*7

UPPER RADIATOR SUPPORT SUB-ASSEMBLY

*8

HOOD LOCK CONTROL CABLE ASSEMBLY

*9

HOOD LOCK NUT CAP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

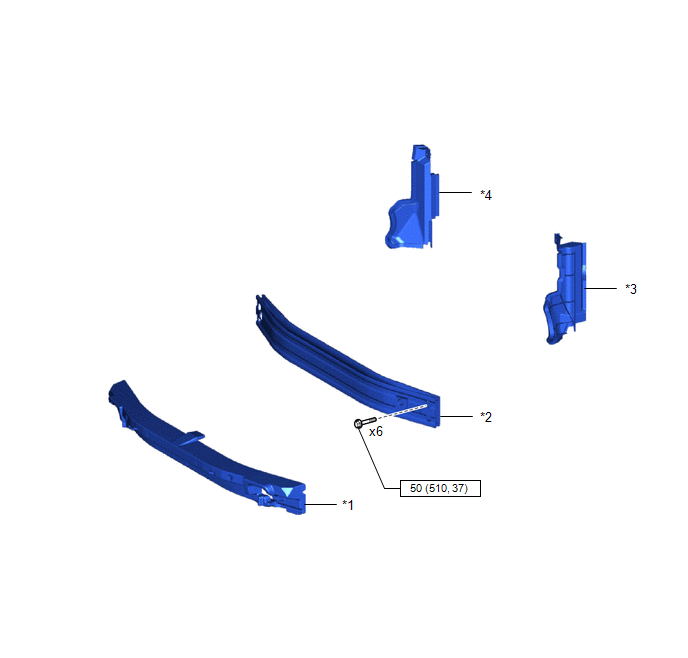

ILLUSTRATION

*1

FRONT BUMPER ENERGY ABSORBER

*2

FRONT BUMPER REINFORCEMENT

*3

NO. 1 RADIATOR AIR GUIDE LH

*4

NO. 1 RADIATOR AIR GUIDE RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

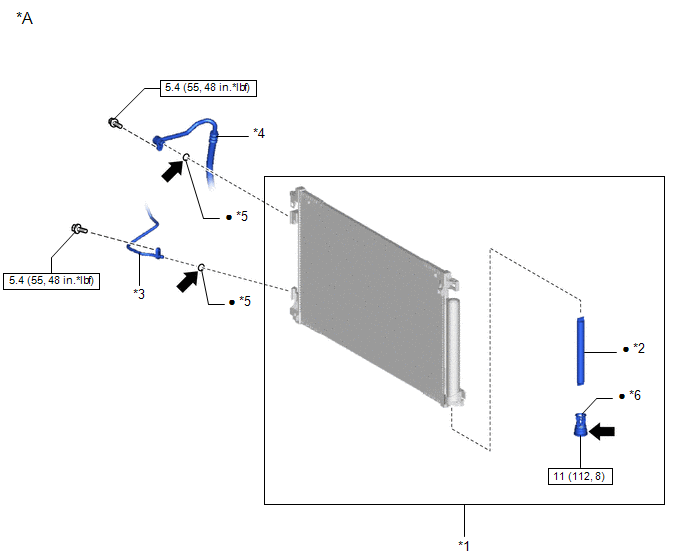

*A

for VALEO Made

-

-

*1

COOLER CONDENSER ASSEMBLY

*2

COOLER DRYER

*3

COOLER REFRIGERANT LIQUID PIPE A

*4

DISCHARGE HOSE SUB-ASSEMBLY

*5

O-RING

*6

CAP

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Compressor oil VC 100YF or equivalent

-

-

ILLUSTRATION

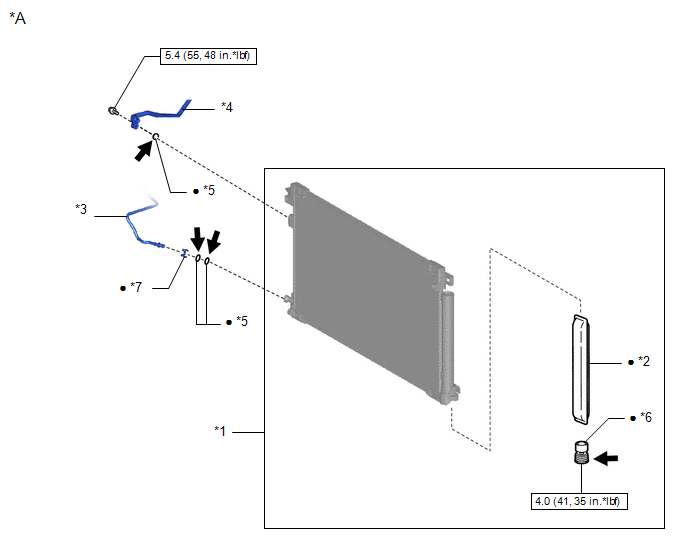

*A

for DENSO Made

-

-

*1

COOLER CONDENSER ASSEMBLY

*2

COOLER DRYER

*3

COOLER REFRIGERANT LIQUID PIPE A

*4

DISCHARGE HOSE SUB-ASSEMBLY

*5

O-RING

*6

CAP

*7

PIPING CLAMP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

    Condenser
    ...

    On-vehicle Inspection
    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT COOLER CONDENSER ASSEMBLY (a) If the cooler condenser assembly fins are dirty, clean them with water and dry them with compressed air. NOTICE: Do not ...
