Toyota CH-R Service Manual: Components

COMPONENTS

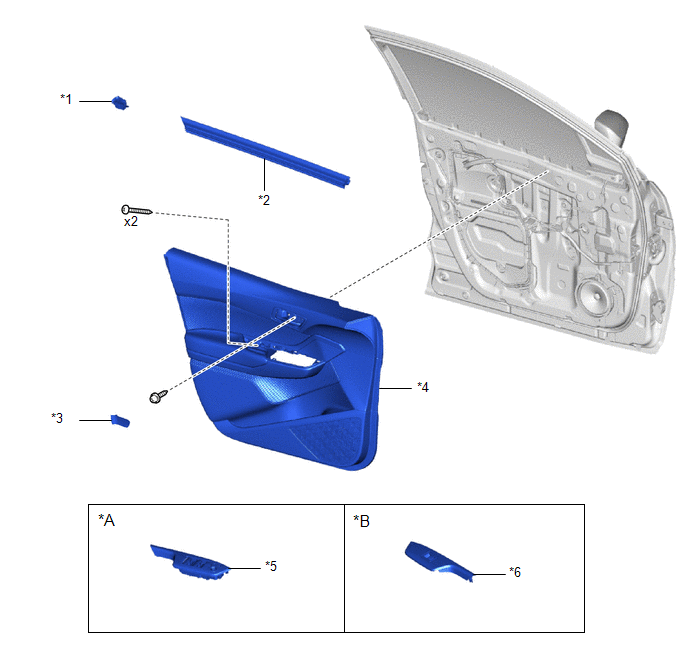

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT DOOR BELT SEAL

*2

FRONT DOOR GLASS INNER WEATHERSTRIP

*3

FRONT DOOR INSIDE HANDLE BEZEL PLUG

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*5

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

*6

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

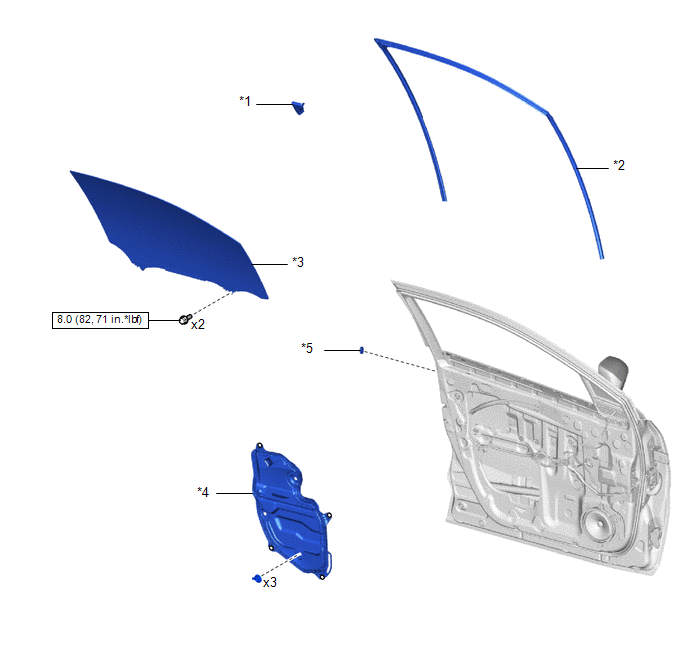

ILLUSTRATION

*1

DOOR FRAME UPPER GARNISH

*2

FRONT DOOR GLASS RUN

*3

FRONT DOOR GLASS SUB-ASSEMBLY

*4

FRONT DOOR SERVICE HOLE COVER

*5

HOLE PLUG

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

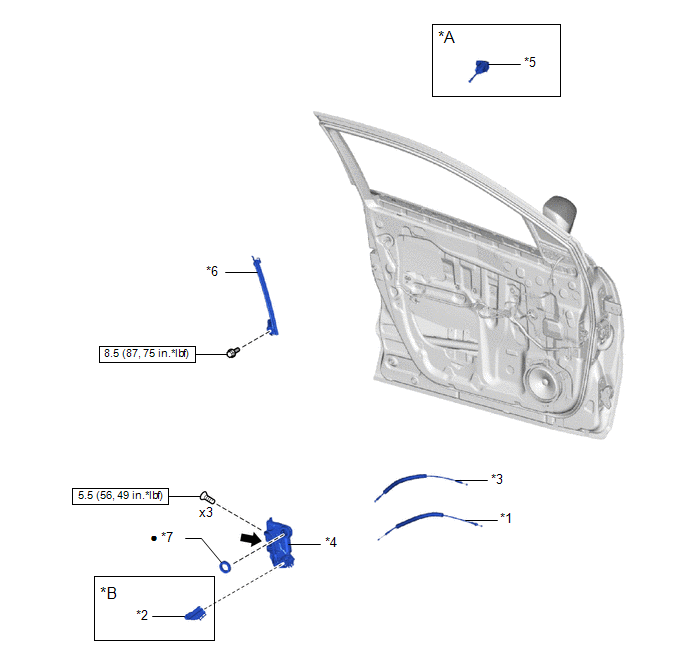

ILLUSTRATION

*A

for Driver Side

*B

w/o Double Locking System

*1

FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

*2

FRONT DOOR LOCK COVER SUB-ASSEMBLY

*3

FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

*4

FRONT DOOR LOCK WITH MOTOR ASSEMBLY

*5

FRONT DOOR OUTSIDE HANDLE COVER

*6

FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

*7

DOOR LOCK WIRING HARNESS SEAL

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

    Front Door Lock
    ...

    Inspection
    INSPECTION PROCEDURE 1. INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH (w/o Double Locking System) (a) Check the door lock motor operation (for Driver Side). (1) Apply battery voltage ...
