Toyota CH-R Service Manual: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL ROCKER PANEL MOULDING PAD

HINT:

  • Using the same procedure, remove every rocker panel moulding pad.
  • When installing the rocker panel moulding pad, heat the rocker panel moulding using a heat light.

Heating Temperature:

Item

Temperature

Rocker Panel Moulding

20 to 30°C (68 to 86)

CAUTION:

  • Do not touch the heat light and heated parts, touching the heat light may result in burns.

    *a

    Heated Part

    *b

    Heat Light

  • Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the rocker panel moulding excessively.

(a) Clean the radiator shutter surface.

(1) Using a heat light, heat the radiator shutter surface.

(2) Remove the double-sided tape from the rocker panel moulding.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Using a heat light, heat the rocker panel moulding.

(c) Remove the release paper from a new rocker panel moulding pad.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

(d) Install the rocker panel moulding pads.

HINT:

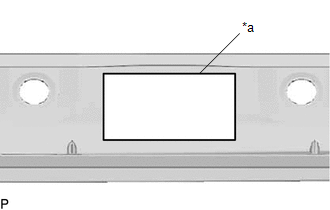

Install a rocker panel moulding pad along the line on the radiator shutter.

*a

Line
