Toyota CH-R Service Manual: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE

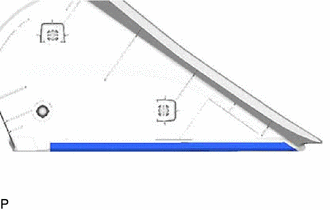

1. REMOVE QUARTER GARNISH MOULDING
|
(a) Remove the quarter garnish moulding. |
|
2. REMOVE NO. 2 REAR PILLAR GARNISH PROTECTOR
|
(a) Remove the No. 2 rear pillar garnish protector. |
|
