Toyota CH-R Owners Manual: Functions included in LDA system

Lane departure alert function

When the system determines that the vehicle might depart from its lane, a warning is displayed on the multi-information display and the warning buzzer sounds to alert the driver.

When the warning buzzer sounds, check the surrounding road situation and carefully operate the steering wheel to move the vehicle back to the center of the line.

Toyota CH-R. Using the driving support systems

Steering control function

When the system determines that the vehicle might depart from its lane, the system provides assistance as necessary by operating the steering wheel in small amounts for a short period of time to keep the vehicle in its lane.

If the system detects that the steering wheel has not been operated for a fixed amount of time or the steering wheel is not being firmly gripped, a warning is displayed on the multi-information display and the warning buzzer sounds.

Toyota CH-R. Using the driving support systems

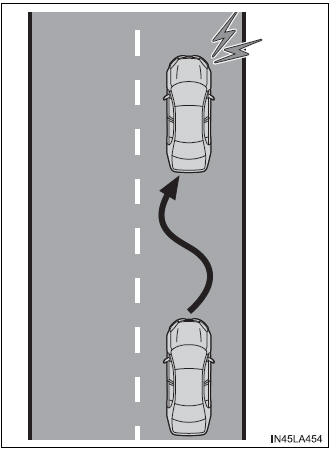

Vehicle sway warning function

When the vehicle is swaying or appears as if it may depart from its lane multiple times, the warning buzzer sounds and a message is displayed on the multi-information display to alert the driver.

Toyota CH-R. Using the driving support systems

WARNING

■Before using LDA system Do not rely solely upon the LDA system. The LDA system does not automatically drive the vehicle or reduce the amount of attention that must be paid to the area in front of the vehicle. The driver must always assume full responsibility for driving safely by paying careful attention to the surrounding conditions and operating the steering wheel to correct the path of the vehicle. Also, the driver must take adequate breaks when fatigued, such as from driving for a long period of time.

Failure to perform appropriate driving operations and pay careful attention may lead to an accident, resulting in death or serious injury.

■To avoid operating LDA system by mistake When not using the LDA system, use the LDA switch to turn the system off.

■Situations unsuitable for LDA system Do not use the LDA system in the following situations.

The system may not operate properly and lead to an accident, resulting in death or serious injury.

  • A compact spare tire, tire chains, etc., are equipped.
  • When the tires have been excessively worn, or when the tire inflation pressure is low.
  • Tires which differ by structure, manufacturer, brand or tread pattern are used.
  • Objects or patterns that could be mistaken for white (yellow) lines are present on the side of the road (guardrails, curbs, reflective poles, etc.).
  • Vehicle is driven on a snow-covered road.
  • White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
  • Asphalt repair marks, white (yellow) line marks, etc., are present due to road repair.
  • Vehicle is driven in a temporary lane or restricted lane due to construction work.
  • Vehicle is driven on a road surface which is slippery due to rainy weather, fallen snow, freezing, etc.
  • Vehicle is driven in traffic lanes other than on highways and freeways.
  • Vehicle is driven in a construction zone.
  • During emergency towing.



WARNING

■Preventing LDA system malfunctions and operations performed by mistake

  • Do not modify the headlights or place stickers, etc., on the surface of the lights.
  • Do not modify the suspension, etc. If the suspension, etc., needs to be replaced, contact your Toyota dealer.
  • Do not install or place anything on the hood or grille. Also, do not install a grille guard (bull bars, kangaroo bar, etc.).
  • If your windshield needs repairs, contact your Toyota dealer.

Turning LDA system on

Press the LDA switch to turn the LDA system on.

The LDA indicator illuminates and a message is displayed on the multi-information display.

Press the LDA switch again to turn the LDA system off.

When the LDA system is turned on or off, operation of the LDA system continues in the same condition the next time the engine is started.

Toyota CH-R. Using the driving support systems

    LDA (Lane Departure Alert with steering control)
    Summary of functions When driving on highways and freeways with white (yellow) lines, this function alerts the driver when the vehicle might depart from its lane and provides assistance by operat ...

    Indications on multi-information display
    LDA indicator The illumination condition of the indicator informs the driver of the system operation status.Illuminated in white: LDA system is operating. Illuminated in green: Steering whee ...
