Toyota CH-R Owners Manual: LDA (Lane Departure Alert with steering control)
Summary of functions
When driving on highways and freeways with white (yellow) lines, this function alerts the driver when the vehicle might depart from its lane and provides assistance by operating the steering wheel to keep the vehicle in its lane.

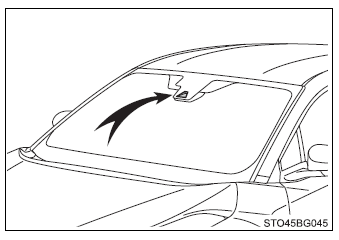

The LDA system recognizes visible white (yellow) lines with the camera sensor on the upper portion of the windshield.
PCS (Pre-Collision System)
The pre-collision system uses a radar sensor and camera sensor to
detect vehicles and pedestrians in front of your vehicle.
When the system determines that the possibility of a frontal collision ...
Functions included in LDA system
Lane departure alert function
When the system determines that the vehicle might depart from its lane, a warning
is displayed on the multi-information display and the warning buzzer sounds to alert ...
