COMPONENTS

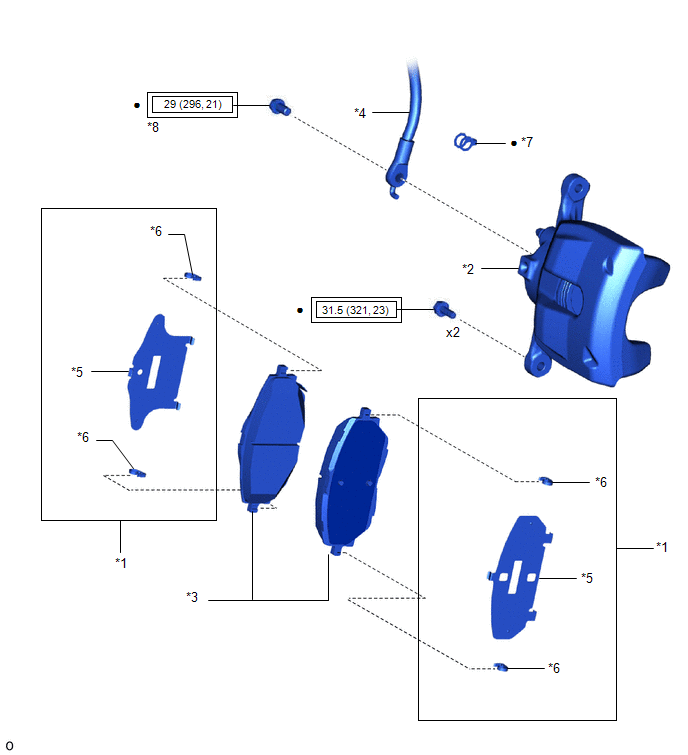

ILLUSTRATION

*1

FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

*2

FRONT DISC BRAKE CYLINDER ASSEMBLY

*3

FRONT DISC BRAKE PAD

*4

FRONT FLEXIBLE HOSE

*5

FRONT DISC BRAKE ANTI-SQUEAL SHIM

*6

FRONT BRAKE PAD RADIAL SPRING

*7

GASKET

*8

UNION BOLT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

ILLUSTRATION

*1

FRONT DISC

*2

FRONT DISC BRAKE BUSHING DUST BOOT

*3

FRONT DISC BRAKE CYLINDER MOUNTING

*4

FRONT DISC BRAKE CYLINDER SLIDE PIN

*5

FRONT DISC BRAKE PAD SUPPORT PLATE

*6

FRONT DISC BRAKE CYLINDER SLIDE BUSHING

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Lithium soap base glycol grease

-

-

ILLUSTRATION

*1

CYLINDER BOOT

*2

FRONT DISC BRAKE BLEEDER PLUG

*3

FRONT DISC BRAKE BLEEDER PLUG CAP

*4

FRONT DISC BRAKE PISTON

*5

PISTON SEAL

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Lithium soap base glycol grease

-

-
