REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • The following procedure is for the LH side.
  • Use the same procedure for the RH side and LH side.

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE REAR WHEEL

Click here

3. PERFORM REAR BRAKE PAD REPLACEMENT MODE

Click here

4. DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

5. REMOVE REAR DISC BRAKE PAD

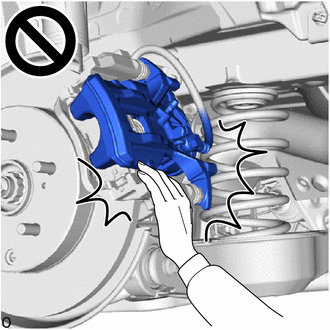

CAUTION:

  • After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
  • The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

(a) Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

(b) Hold the rear disc brake cylinder slide pin, and remove the bolt.

*a

Hold

*b

Turn

(c) Pull the rear disc brake cylinder assembly upward.

(d) Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

6. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

(a) Remove the rear disc brake anti-squeal shim from each rear disc brake pad.
