Toyota CH-R Owners Manual: Key information

The keys

The following keys are provided with the vehicle.

Vehicles without a smart key system (type A)

  1. Key (with a wireless remote control function)
    Operating the wireless remote control function
  2. Key (without a wireless remote control function)
  3. Key number plate

Toyota CH-R. Key information

Vehicles without a smart key system (type B)

  1. Key (with a wireless remote control function)
    Operating the wireless remote control function
  2. Key number plate

Toyota CH-R. Key information

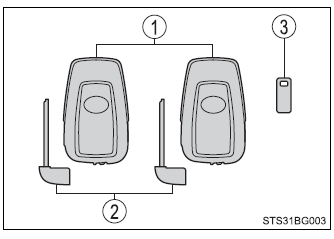

Vehicles with a smart key system

  1. Electronic keys
    • Operating the smart key system
    • Operating the wireless remote control function
  2. Mechanical keys
  3. Key number plate

Toyota CH-R. Key information

Wireless remote control

Vehicles without a smart key system

  1. Locks all the doors
  2. Sounds the alarm
  3. Unlocks the door
    Pressing the button unlocks the driver's door. Pressing the button again within 3 seconds unlocks the other doors.
  4. Opens the windows*

*: These settings must be customized at your Toyota dealer.

Toyota CH-R. Key information

Vehicles with a smart key system

  1. Locks all the doors
  2. Sounds the alarm
  3. Unlocks the door
    Pressing the button unlocks the driver's door. Pressing the button again within 3 seconds unlocks the other doors.
  4. Opens the windows*

*: These settings must be customized at your Toyota dealer.

Toyota CH-R. Key information

Using the key (vehicles without a smart key system)

Press the button to open the key.

To stow, press the button then fold the key.

Toyota CH-R. Key information

Using the mechanical key (vehicles with a smart key system)

To take out the mechanical key, slide the release lever and take the key out.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side.

If the key cannot be inserted in a lock cylinder, turn it over and reattempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key.

Toyota CH-R. Key information

■Panic mode

When Toyota CH-R. Key informationis pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, press any button on the key (with a wireless remote control function) or electronic key.

Toyota CH-R. Key information

■If you lose your keys New genuine keys can be made by your Toyota dealer using the other key (vehicles without a smart key system) or mechanical key (vehicles with a smart key system) and the key number stamped on your key number plate.

Keep the plate in a safe place such as your wallet, not in the vehicle.

■When riding in an aircraft When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag, etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

■Conditions affecting the operation of the smart key system or wireless remote control

Vehicles without a smart key system

The wireless remote control function may not operate normally in the following situations:

  • When the wireless key battery is depleted
  • Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
  • When carrying a portable radio, cellular phone or other wireless communication devices
  • When multiple wireless keys are in the vicinity
  • When the wireless key is in contact with, or is covered by a metallic object
  • When a wireless key (that emits radio waves) is being used nearby
  • When the wireless key has been left near an electrical appliance such as a personal computer
  • If window tint with a metallic content or metallic objects are attached to the rear window

Vehicles with a smart key system

■Key battery depletion

Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary.

Vehicles with a smart key system

  • The standard battery life is 1 to 2 years.
  • If the battery becomes low, an alarm will sound in the cabin when the engine stops.
  • As the electronic key always receives radio waves, the battery will become depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when necessary.
    • The smart key system or the wireless remote control does not operate.
    • The detection area becomes smaller.
    • The LED indicator on the key surface does not turn on.

The battery can be exchanged by the users. However, as there may be damage to the key when exchanging, it is recommended to have the battery exchanged at your Toyota Dealer.

  • To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the following electrical appliances that produce a magnetic field:
    • TVs
    • Personal computers
    • Cellular phones, cordless phones and battery chargers
    • Recharging cellular phones or cordless phones
    • Table lamps
    • Induction cookers

■When the key battery is fully depleted

■Confirmation of the registered key number (vehicles with a smart key system) The number of keys already registered to the vehicle can be confirmed. Ask your Toyota dealer for details.

■Customization Settings (e.g. wireless remote control system) can be changed.

NOTICE

■To prevent key damage

  • Do not drop the keys, subject them to strong shocks, or bend them.
  • Do not expose the keys to high temperatures for long periods of time.
  • Do not get the keys wet or wash them in an ultrasonic washer, etc.
  • Do not attach metallic or magnetic materials to the keys or place the keys close to such materials.
  • Do not disassemble the keys.
  • Do not attach a sticker or anything else to the surface of the electronic key and key (with a wireless remote control function).
  • Vehicles with a smart key system: Do not place the keys near objects that produce magnetic fields, such as TVs, audio systems and induction cookers, or medical electrical equipment, such as low-frequency therapy equipment.

■Carrying the electronic key on your person (vehicles with a smart key system) Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing the key to not function properly.

■In case of a smart key system malfunction or other key-related problems (vehicles with a smart key system) Take your vehicle with all the electronic keys provided with your vehicle to your Toyota dealer.

■When an electronic key is lost (vehicles with a smart key system) If the electronic key remains lost, the risk of vehicle theft increases significantly.

Visit your Toyota dealer immediately with all remaining electronic keys that was provided with your vehicle.
