Toyota CH-R Service Manual: Side Airbag Sensor Assembly No.2 Lost Communication (RH) (B162B/85,B162C/85)

Toyota CH-R Service Manual / Supplemental Restraint Systems / Airbag System / Side Airbag Sensor Assembly No.2 Lost Communication (RH) (B162B/85,B162C/85)

DESCRIPTION

The side collision sensor RH circuit (bus 2) consists of the airbag sensor assembly and floor side airbag sensor RH.

The floor side airbag sensor RH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the airbags and pretensioners should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor RH circuit (bus 2).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Test Mode / Check Mode

B162B/85

Side Airbag Sensor Assembly No.2 Lost Communication (RH)

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects a short to ground in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects an open in the side collision sensor RH circuit (bus 2).
  • Floor side airbag sensor RH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Floor side airbag sensor RH
  • Airbag sensor assembly

Does not apply to test/check mode

B162C/85

Side Airbag Sensor Assembly No.2 Initialization Error (RH)

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects a short to ground in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor RH circuit (bus 2).
  • The airbag sensor assembly detects an open in the side collision sensor RH circuit (bus 2).
  • Floor side airbag sensor RH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Floor side airbag sensor RH
  • Airbag sensor assembly

Does not apply to test/check mode

DTC Detection Conditions (B162B/85):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

Floor side airbag sensor RH malfunction

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

Detection Time

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B162C/85):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor RH circuit (bus 2)

-

-

-

-

-

Floor side airbag sensor RH malfunction

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

Detection Time

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

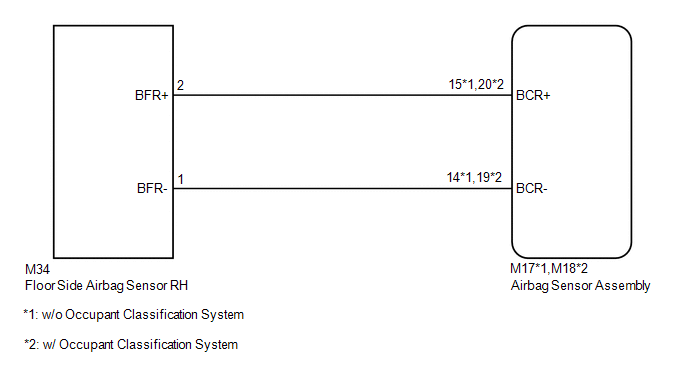

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

PROCEDURE

1.

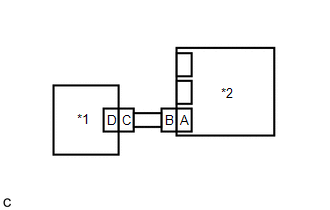

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the airbag sensor assembly and floor side airbag sensor RH.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the airbag sensor assembly and floor side airbag sensor RH.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

NG

REPLACE FLOOR WIRE

OK

2.

CHECK FLOOR WIRE (OPEN)

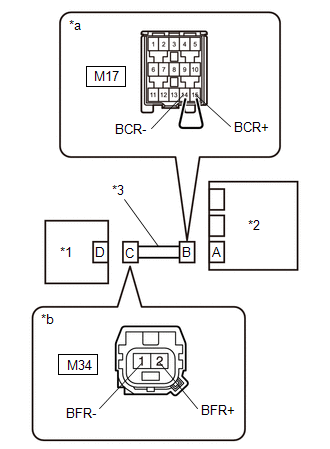

(a) w/o Occupant Classification System

(1) Using a service wire, connect terminals 15 (BCR+) and 14 (BCR-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*1

Floor Side Airbag Sensor RH

*2

Airbag Sensor Assembly

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)

*b

Front view of wire harness connector

(to Floor Side Airbag Sensor RH)

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M34-2 (BFR+) - M34-1 (BFR-)

Always

Below 1 Ω

(3) Disconnect the service wire from connector B.

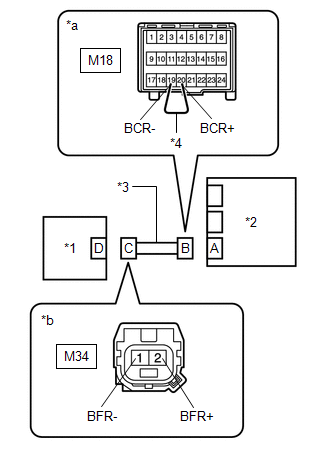

(b) w/ Occupant Classification System

(1) Using a service wire, connect terminals 20 (BCR+) and 19 (BCR-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*1

Floor Side Airbag Sensor RH

*2

Airbag Sensor Assembly

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)

*b

Front view of wire harness connector

(to Floor Side Airbag Sensor RH)

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M34-2 (BFR+) - M34-1 (BFR-)

Always

Below 1 Ω

(3) Disconnect the service wire from connector B.

NG

REPLACE FLOOR WIRE

OK

3.

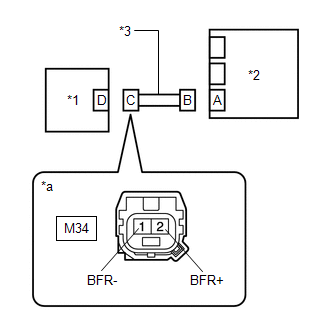

CHECK FLOOR WIRE (SHORT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M34-2 (BFR+) - M34-1 (BFR-)

Always

1 MΩ or higher

*1

Floor Side Airbag Sensor RH

*2

Airbag Sensor Assembly

*3

Floor Wire

*a

Front view of wire harness connector

(to Floor Side Airbag Sensor RH)

NG

REPLACE FLOOR WIRE

OK

4.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

Floor Side Airbag Sensor RH

*2

Airbag Sensor Assembly

*3

Floor Wire

*a

Front view of wire harness connector

(to Floor Side Airbag Sensor RH)

(b) Turn the ignition switch off.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M34-2 (BFR+) - Body ground

Ignition switch ON

Below 1 V

M34-1 (BFR-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

5.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M34-2 (BFR+) - Body ground

Always

1 MΩ or higher

M34-1 (BFR-) - Body ground

Always

1 MΩ or higher

*1

Floor Side Airbag Sensor RH

*2

Airbag Sensor Assembly

*3

Floor Wire

*a

Front view of wire harness connector

(to Floor Side Airbag Sensor RH)

NG

REPLACE FLOOR WIRE

OK

6.

CHECK FLOOR SIDE AIRBAG SENSOR RH

(a) Connect the connector to the airbag sensor assembly.

*1

Floor Side Airbag Sensor LH

*2

Airbag Sensor Assembly

(b) Interchange the floor side airbag sensor RH with LH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

(f) Turn the ignition switch ON, and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B162B/85, B162C/85, B163B/86 and B163C/86 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B162B/85 or B162C/85 is output.

A

DTC B163B/86 or B163C/86 is output.

B

DTCs B162B/85, B162C/85, B163B/86 and B163C/86 are not output.

C

(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(j) Return the floor side airbag sensor RH and LH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE FLOOR SIDE AIRBAG SENSOR RH

C

USE SIMULATION METHOD TO CHECK
