DESCRIPTION

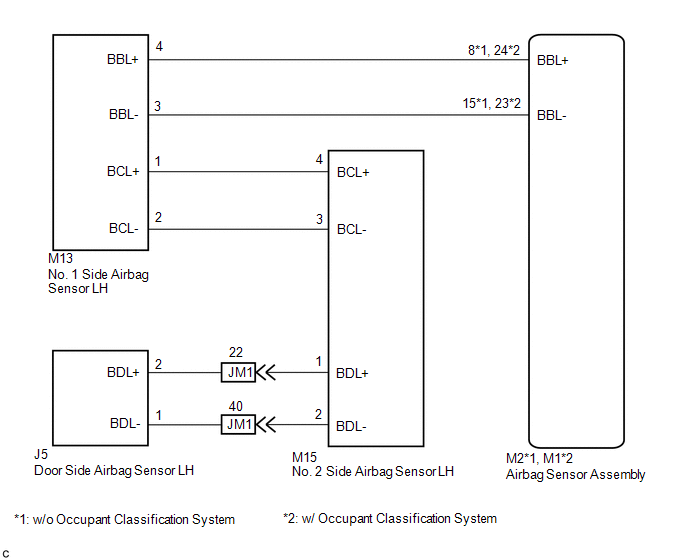

The side collision sensor LH circuit (bus 1) consists of the airbag sensor assembly, door side airbag sensor LH, No. 1 side airbag sensor LH and No. 2 side airbag sensor LH.

The door side airbag sensor LH, No. 1 side airbag sensor LH and No. 2 side airbag sensor LH detect impacts to the vehicle and send signals to the airbag sensor assembly to determine if the airbags and pretensioners should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor LH circuit (bus 1).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Test Mode / Check Mode

B1627/82

Lost communication with Side Airbag Sensor LH

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B1628/82

Side Airbag Sensor Assembly LH Initialization Incomplete

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B1637/82

Lost Communication with Rear Airbag Sensor LH

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B1638/82

Rear Airbag Sensor Assembly LH Initialization Incomplete

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B1647/82

Lost Communication with Side Satellite Sensor Bus LH

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B1648/82

Side Satellite Sensor Bus LH Initialization Incomplete

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B167B/82

Lost Communication with Front Door Pressure Sensor LH

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

B167C/82

Front Door Pressure Sensor LH Initialization Incomplete

Any of the following conditions is met:

  • The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1).
  • The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1).
  • No. 1 side airbag sensor LH malfunction
  • No. 2 side airbag sensor LH malfunction
  • Door side airbag sensor LH malfunction
  • Airbag sensor assembly malfunction
  • Floor wire
  • Front door wire LH
  • No. 1 side airbag sensor LH
  • No. 2 side airbag sensor LH
  • Door side airbag sensor LH
  • Airbag sensor assembly

Does not apply to test/check mode

DTC Detection Conditions (B1627/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B1628/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B1637/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B1638/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B1647/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B1648/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B167B/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

DTC Detection Conditions (B167C/82):


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Pattern 7

Pattern 8

Diagnosis Condition

Ignition switch ON

Malfunction Status

The airbag sensor assembly detects a line short in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to ground in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects a short to B+ in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

The airbag sensor assembly detects an open in the side collision sensor LH circuit (bus 1)

-

-

-

-

-

-

-

No. 1 side airbag sensor LH malfunction

-

-

-

-

-

-

-

No. 2 side airbag sensor LH malfunction

-

-

-

-

-

-

-

Door side airbag sensor LH malfunction

-

-

-

-

-

-

-

Airbag sensor assembly malfunction

-

-

-

-

-

-

-

Detection Time

-

-

-

-

-

-

-

-

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

PROCEDURE

1.

CHECK CURRENT DTC

(a) Check for current DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

  • DTCs indicating communication errors will be changed to DTCs indicating errors in initialization by turning the ignition switch off and then ON again.
  • Codes other than current DTCs B1627/82, B1628/82, B1637/82, B1638/82, B1647/82, B1648/82, B167B/82 and B167C/82 may be output at this time, but they are not related to this check.

Result

Proceed to

Current DTC B1647/82 or B1648/82 is output.

A

Current DTC B1628/82 is output.

B

Current DTC B1638/82 is output.

C

Current DTC B167B/82 or B167C/82 is output.

D

Current DTC B1627/82 is output.

E

Current DTC B1637/82 is output.

F

Current DTCs B1627/82, B1628/82, B1637/82, B1638/82, B1647/82, B1648/82, 167B/82 and B167C/82 are not output.

G

B

GO TO STEP 22

C

GO TO STEP 42

D

GO TO STEP 51

E

GO TO STEP 62

F

GO TO STEP 63

G

USE SIMULATION METHOD TO CHECK

A

2.

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

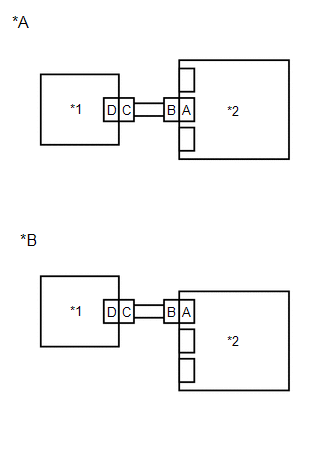

(c) Check that the connectors are properly connected to the airbag sensor assembly, No. 1 side airbag sensor LH, No. 2 side airbag sensor LH and door side airbag sensor LH. Also check that the connectors that link the floor wire and front door wire LH are properly connected.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the airbag sensor assembly, No. 1 side airbag sensor LH, No. 2 side airbag sensor LH and door side airbag sensor LH. Also disconnect the connectors that link the floor wire and front door wire LH.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

NG

REPLACE WIRE HARNESS

OK

3.

CHECK FLOOR WIRE (OPEN)

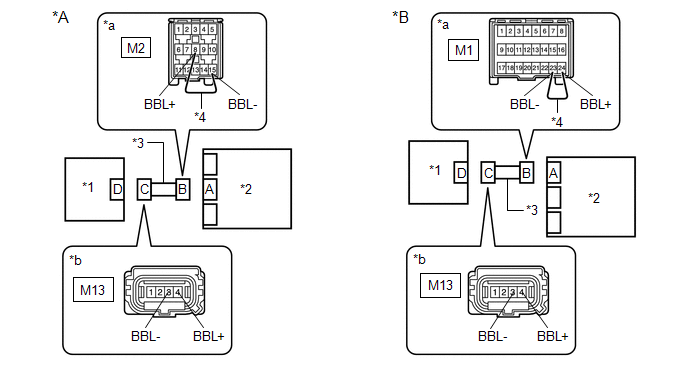

(a) w/o Occupant Classification System

(1) Using a service wire, connect terminals 8 (BBL+) and 15 (BBL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(b) w/ Occupant Classification System

(1) Using a service wire, connect terminals 24 (BBL+) and 23 (BBL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)

*b

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - M13-3 (BBL-)

Always

Below 1 Ω

(d) Disconnect the service wire from connector B.

NG

REPLACE FLOOR WIRE

OK

4.

CHECK FLOOR WIRE (SHORT)

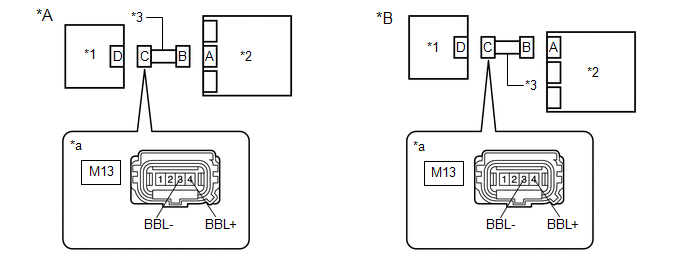

(a) Measure the resistance according to the value(s) in the table below.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - M13-3 (BBL-)

Always

1 MΩ or higher

NG

REPLACE FLOOR WIRE

OK

5.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M13-4 (BBL+) - Body ground

Ignition switch ON

Below 1 V

M13-3 (BBL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

6.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - Body ground

Always

1 MΩ or higher

M13-3 (BBL-) - Body ground

Always

1 MΩ or higher

NG

REPLACE FLOOR WIRE

OK

7.

CHECK FLOOR WIRE (OPEN)

(a) Using a service wire, connect terminals 4 (BCL+) and 3 (BCL-) of connector C.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector C.

NG

REPLACE FLOOR WIRE

OK

8.

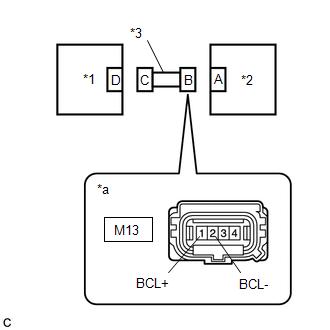

CHECK FLOOR WIRE (SHORT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

1 MΩ or higher

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

9.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M13-1 (BCL+) - Body ground

Ignition switch ON

Below 1 V

M13-2 (BCL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

10.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - Body ground

Always

1 MΩ or higher

M13-2 (BCL-) - Body ground

Always

1 MΩ or higher

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

11.

CHECK WIRE HARNESS (OPEN)

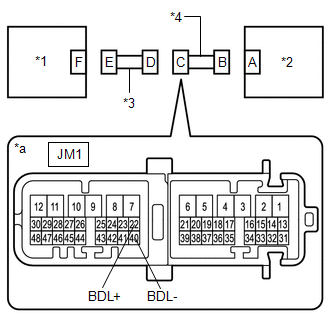

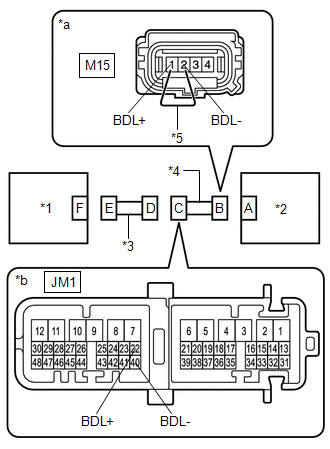

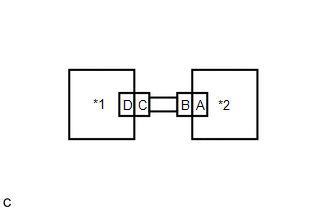

(a) Connect the connectors that link the floor wire and front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

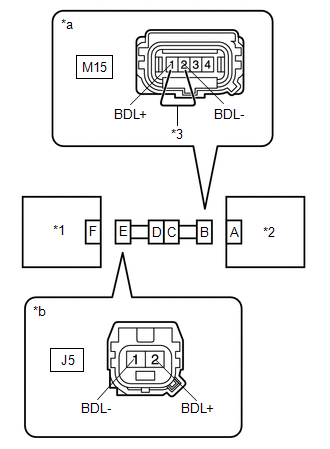

(b) Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

Below 1 Ω

NG

GO TO STEP 21

OK

12.

CHECK WIRE HARNESS (SHORT)

(a) Disconnect the service wire from connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

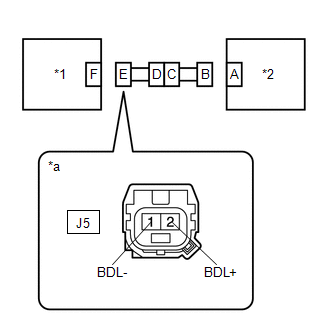

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

1 MΩ or higher

NG

GO TO STEP 20

OK

13.

CHECK WIRE HARNESS (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

J5-2 (BDL+) - Body ground

Ignition switch ON

Below 1 V

J5-1 (BDL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

GO TO STEP 19

OK

14.

CHECK WIRE HARNESS (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - Body ground

Always

1 MΩ or higher

J5-1 (BDL-) - Body ground

Always

1 MΩ or higher

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

NG

GO TO STEP 18

OK

15.

CHECK NO. 1 SIDE AIRBAG SENSOR LH

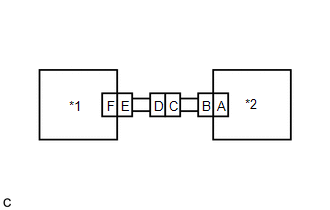

(a) Connect the connectors to the No. 2 side airbag sensor LH, door side airbag sensor LH and airbag sensor assembly.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor RH

*2

Airbag Sensor Assembly

(b) Interchange the No. 1 side airbag sensor LH with RH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

(f) Turn the ignition switch ON, and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1642/81, B1643/81, B1647/82 and B1648/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1647/82 or B1648/82 is output.

A

DTC B1642/81 or B1643/81 is output.

B

DTCs B1642/81, B1643/81, B1647/82 and B1648/82 are not output.

C

(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(j) Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors.

B

REPLACE NO. 1 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

A

16.

CHECK NO. 2 SIDE AIRBAG SENSOR LH

(a) Interchange the No. 2 side airbag sensor LH with RH and connect the connectors.

*1

No. 2 Side Airbag Sensor RH

*2

No. 1 Side Airbag Sensor LH

(b) Connect the cable to the negative (-) battery terminal.

(c) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(d) Turn the ignition switch off.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1642/81, B1643/81, B1647/82 and B1648/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1647/82 or B1648/82 is output.

A

DTC B1642/81 or B1643/81 is output.

B

DTCs B1642/81, B1643/81, B1647/82 and B1648/82 are not output.

C

(g) Turn the ignition switch off.

(h) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(i) Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors.

B

REPLACE NO. 2 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

A

17.

CHECK DOOR SIDE AIRBAG SENSOR LH

(a) Interchange the door side airbag sensor LH with RH and connect the connectors.

*1

Door Side Airbag Sensor RH

*2

No. 2 Side Airbag Sensor LH

(b) Connect the cable to the negative (-) battery terminal.

(c) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(d) Turn the ignition switch off.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1642/81, B1643/81, B1647/82 and B1648/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1647/82 or B1648/82 is output.

A

DTC B1642/81 or B1643/81 is output.

B

DTCs B1642/81, B1643/81, B1647/82 and B1648/82 are not output.

C

(g) Turn the ignition switch off.

(h) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(i) Return the door side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE DOOR SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

18.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Always

1 MΩ or higher

JM1-40 (BDL-) - Body ground

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

19.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Ignition switch ON

Below 1 V

JM1-40 (BDL-) - Body ground

Ignition switch ON

Below 1 V

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

20.

CHECK FLOOR WIRE (SHORT)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

21.

CHECK FLOOR WIRE (OPEN)

(a) Disconnect the floor wire connector from the front door wire LH.

HINT:

The service wire has already been inserted into connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*5

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector B.

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

22.

CHECK HISTORY DTC

(a) Check for history DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than history DTC B1627/82 may be output at this time, but they are not related to this check.

Result

Proceed to

History DTC B1627/82 is not output.

A

History DTC B1627/82 is output.

B

B

GO TO STEP 41

A

23.

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the airbag sensor assembly, No. 1 side airbag sensor LH, No. 2 side airbag sensor LH and door side airbag sensor LH. Also check that the connectors that link the floor wire and front door wire LH are properly connected.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the airbag sensor assembly, No. 1 side airbag sensor LH, No. 2 side airbag sensor LH and door side airbag sensor LH. Also disconnect the connectors that link the floor wire and front door wire LH.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

NG

REPLACE WIRE HARNESS

OK

24.

CHECK FLOOR WIRE (OPEN)

(a) w/o Occupant Classification System

(1) Using a service wire, connect terminals 8 (BBL+) and 15 (BBL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(b) w/ Occupant Classification System

(1) Using a service wire, connect terminals 24 (BBL+) and 23 (BBL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)

*b

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - M13-3 (BBL-)

Always

Below 1 Ω

(d) Disconnect the service wire from connector B.

NG

REPLACE FLOOR WIRE

OK

25.

CHECK FLOOR WIRE (SHORT)

(a) Measure the resistance according to the value(s) in the table below.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - M13-3 (BBL-)

Always

1 MΩ or higher

NG

REPLACE FLOOR WIRE

OK

26.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M13-4 (BBL+) - Body ground

Ignition switch ON

Below 1 V

M13-3 (BBL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

27.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor LH

*2

Airbag Sensor Assembly

*3

Floor Wire

-

-

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-4 (BBL+) - Body ground

Always

1 MΩ or higher

M13-3 (BBL-) - Body ground

Always

1 MΩ or higher

NG

REPLACE FLOOR WIRE

OK

28.

CHECK FLOOR WIRE (OPEN)

(a) Using a service wire, connect terminals 4 (BCL+) and 3 (BCL-) of connector C.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector C.

NG

REPLACE FLOOR WIRE

OK

29.

CHECK FLOOR WIRE (SHORT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

1 MΩ or higher

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

30.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M13-1 (BCL+) - Body ground

Ignition switch ON

Below 1 V

M13-2 (BCL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

31.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - Body ground

Always

1 MΩ or higher

M13-2 (BCL-) - Body ground

Always

1 MΩ or higher

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

32.

CHECK WIRE HARNESS (OPEN)

(a) Connect the connectors that link the floor wire and front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

Below 1 Ω

NG

GO TO STEP 40

OK

33.

CHECK WIRE HARNESS (SHORT)

(a) Disconnect the service wire from connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

1 MΩ or higher

NG

GO TO STEP 39

OK

34.

CHECK WIRE HARNESS (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

J5-2 (BDL+) - Body ground

Ignition switch ON

Below 1 V

J5-1 (BDL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

GO TO STEP 38

OK

35.

CHECK WIRE HARNESS (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - Body ground

Always

1 MΩ or higher

J5-1 (BDL-) - Body ground

Always

1 MΩ or higher

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

NG

GO TO STEP 37

OK

36.

CHECK NO. 1 SIDE AIRBAG SENSOR LH

(a) Connect the connectors to the No. 2 side airbag sensor LH, door side airbag sensor LH and airbag sensor assembly.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor RH

*2

Airbag Sensor Assembly

(b) Interchange the No. 1 side airbag sensor LH with RH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

(f) Turn the ignition switch ON, and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1623/81 and B1628/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1628/82 is output.

A

DTC B1623/81 is output.

B

DTCs B1623/81 and B1628/82 are not output.

C

(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(j) Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 1 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

37.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Always

1 MΩ or higher

JM1-40 (BDL-) - Body ground

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

38.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Ignition switch ON

Below 1 V

JM1-40 (BDL-) - Body ground

Ignition switch ON

Below 1 V

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

39.

CHECK FLOOR WIRE (SHORT)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

40.

CHECK FLOOR WIRE (OPEN)

(a) Disconnect the floor wire connector from the front door wire LH.

HINT:

The service wire has already been inserted into connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*5

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector B.

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

41.

CHECK NO. 1 SIDE AIRBAG SENSOR LH

(a) Turn the ignition switch off.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor RH

*2

Airbag Sensor Assembly

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Interchange the No. 1 side airbag sensor LH with RH and connect the connectors.

(d) Connect the cable to the negative (-) battery terminal.

(e) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

(g) Turn the ignition switch ON, and wait for at least 60 seconds.

(h) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1622/81 and B1627/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1627/82 is output.

A

DTC B1622/81 is output.

B

DTCs B1622/81 and B1627/82 are not output.

C

(i) Turn the ignition switch off.

(j) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(k) Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 1 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

42.

CHECK HISTORY DTC

(a) Check for history DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than history DTC B1637/82 may be output at this time, but they are not related to this check.

Result

Proceed to

History DTC B1637/82 is not output.

A

History DTC B1637/82 is output.

B

B

GO TO STEP 50

A

43.

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the No. 1 side airbag sensor LH and No. 2 side airbag sensor LH.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the No. 1 side airbag sensor LH and No. 2 side airbag sensor LH.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

NG

REPLACE FLOOR WIRE

OK

44.

CHECK FLOOR WIRE (OPEN)

(a) Using a service wire, connect terminals 4 (BCL+) and 3 (BCL-) of connector C.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

*1

No. 2 Side Airbag Sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*4

Service Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector C.

NG

REPLACE FLOOR WIRE

OK

45.

CHECK FLOOR WIRE (SHORT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - M13-2 (BCL-)

Always

1 MΩ or higher

*1

No. 2 side airbag sensor LH

*2

No. 1 Side Airbag Sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

46.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

No. 2 side airbag sensor LH

*2

No. 1 side airbag sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

M13-1 (BCL+) - Body ground

Ignition switch ON

Below 1 V

M13-2 (BCL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

REPLACE FLOOR WIRE

OK

47.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M13-1 (BCL+) - Body ground

Always

1 MΩ or higher

M13-2 (BCL-) - Body ground

Always

1 MΩ or higher

*1

No. 2 side airbag sensor LH

*2

No. 1 side airbag sensor LH

*3

Floor Wire

*a

Front view of wire harness connector

(to No. 1 Side Airbag Sensor LH)

NG

REPLACE FLOOR WIRE

OK

48.

CHECK NO. 1 SIDE AIRBAG SENSOR LH

(a) Connect the connector to the No. 2 side airbag sensor LH.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor RH

*2

Airbag Sensor Assembly

(b) Interchange the No. 1 side airbag sensor LH with RH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

(f) Turn the ignition switch ON, and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1633/81 and B1638/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1638/82 is output.

A

DTC B1633/81 is output.

B

DTCs B1633/81 and B1638/82 are not output.

C

(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(j) Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors.

B

REPLACE NO. 1 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

A

49.

CHECK NO. 2 SIDE AIRBAG SENSOR LH

(a) Interchange the No. 2 side airbag sensor LH with RH and connect the connectors.

*1

No. 2 Side Airbag Sensor RH

*2

No. 1 Side Airbag Sensor LH

(b) Connect the cable to the negative (-) battery terminal.

(c) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(d) Turn the ignition switch off.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1633/81 and B1638/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1638/82 is output.

A

DTC B1633/81 is output.

B

DTCs B1633/81 and B1638/82 are not output.

C

(g) Turn the ignition switch off.

(h) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(i) Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 2 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

50.

CHECK NO. 2 SIDE AIRBAG SENSOR LH

(a) Turn the ignition switch off.

*1

No. 2 Side Airbag Sensor RH

*2

No. 1 Side Airbag Sensor LH

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Interchange the No. 2 side airbag sensor LH with RH and connect the connectors.

(d) Connect the cable to the negative (-) battery terminal.

(e) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

(g) Turn the ignition switch ON, and wait for at least 60 seconds.

(h) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1632/81 and B1637/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1637/82 is output.

A

DTC B1632/81 is output.

B

DTCs B1632/81 and B1637/82 are not output.

C

(i) Turn the ignition switch off.

(j) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(k) Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 2 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

51.

CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the No. 2 side airbag sensor LH and door side airbag sensor LH. Also check that the connectors that link the floor wire and front door wire LH are properly connected.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the No. 2 side airbag sensor LH and door side airbag sensor LH. Also disconnect the connectors that link the floor wire and front door wire LH.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

NG

REPLACE WIRE HARNESS

OK

52.

CHECK WIRE HARNESS (OPEN)

(a) Connect the connectors that link the floor wire and front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

Below 1 Ω

NG

GO TO STEP 61

OK

53.

CHECK WIRE HARNESS (SHORT)

(a) Disconnect the service wire from connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - J5-1 (BDL-)

Always

1 MΩ or higher

NG

GO TO STEP 60

OK

54.

CHECK WIRE HARNESS (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

J5-2 (BDL+) - Body ground

Ignition switch ON

Below 1 V

J5-1 (BDL-) - Body ground

Ignition switch ON

Below 1 V

(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NG

GO TO STEP 59

OK

55.

CHECK WIRE HARNESS (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J5-2 (BDL+) - Body ground

Always

1 MΩ or higher

J5-1 (BDL-) - Body ground

Always

1 MΩ or higher

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*a

Front view of wire harness connector

(to Door Side Airbag Sensor LH)

NG

GO TO STEP 58

OK

56.

CHECK NO. 2 SIDE AIRBAG SENSOR LH

(a) Connect the connector to the door side airbag sensor LH.

*1

No. 2 Side Airbag Sensor RH

*2

No. 1 Side Airbag Sensor LH

(b) Interchange the No. 2 side airbag sensor LH with RH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the ignition switch off.

(f) Turn the ignition switch ON, and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B166D/81, B166E/81, B167B/82 and B167C/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B167B/82 or B167C/82 is output.

A

DTC B166D/81 or B166E/81 is output.

B

DTCs B166D/81, B166E/81, B167B/82 and B167C/82 are not output.

C

(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(j) Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors.

B

REPLACE NO. 2 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

A

57.

CHECK DOOR SIDE AIRBAG SENSOR LH

(a) Interchange the door side airbag sensor LH with RH and connect the connectors.

*1

Door Side Airbag Sensor RH

*2

No. 2 Side Airbag Sensor LH

(b) Connect the cable to the negative (-) battery terminal.

(c) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(d) Turn the ignition switch off.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B166D/81, B166E/81, B167B/82 and B167C/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B167B/82 or B167C/82 is output.

A

DTC B166D/81 or B166E/81 is output.

B

DTCs B166D/81, B166E/81, B167B/82 and B167C/82 are not output.

C

(g) Turn the ignition switch off.

(h) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(i) Return the door side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE DOOR SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

58.

CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Always

1 MΩ or higher

JM1-40 (BDL-) - Body ground

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

59.

CHECK FLOOR WIRE (SHORT TO B+)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the ignition switch ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

JM1-22 (BDL+) - Body ground

Ignition switch ON

Below 1 V

JM1-40 (BDL-) - Body ground

Ignition switch ON

Below 1 V

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

60.

CHECK FLOOR WIRE (SHORT)

(a) Disconnect the floor wire connector from the front door wire LH.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*a

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

1 MΩ or higher

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

61.

CHECK FLOOR WIRE (OPEN)

(a) Disconnect the floor wire connector from the front door wire LH.

HINT:

The service wire has already been inserted into connector B.

*1

Door Side Airbag Sensor LH

*2

No. 2 Side Airbag Sensor LH

*3

Front Door Wire LH

*4

Floor Wire

*5

Service Wire

*a

Front view of wire harness connector

(to No. 2 Side Airbag Sensor LH)

*b

Front view of wire harness connector

(to Front Door Wire LH)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JM1-22 (BDL+) - JM1-40 (BDL-)

Always

Below 1 Ω

(c) Disconnect the service wire from connector B.

OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE FLOOR WIRE

62.

CHECK NO. 1 SIDE AIRBAG SENSOR LH

(a) Turn the ignition switch off.

*A

w/o Occupant Classification System

*B

w/ Occupant Classification System

*1

No. 1 Side Airbag Sensor RH

*2

Airbag Sensor Assembly

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Interchange the No. 1 side airbag sensor LH with RH and connect the connectors.

(d) Connect the cable to the negative (-) battery terminal.

(e) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

(g) Turn the ignition switch ON, and wait for at least 60 seconds.

(h) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1622/81 and B1627/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1627/82 is output.

A

DTC B1622/81 is output.

B

DTCs B1622/81 and B1627/82 are not output.

C

(i) Turn the ignition switch off.

(j) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(k) Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 1 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

63.

CHECK NO. 2 SIDE AIRBAG SENSOR LH

(a) Turn the ignition switch off.

*1

No. 2 Side Airbag Sensor RH

*2

No. 1 Side Airbag Sensor LH

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Interchange the No. 2 side airbag sensor LH with RH and connect the connectors.

(d) Connect the cable to the negative (-) battery terminal.

(e) Clear the DTCs stored in memory.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the ignition switch off.

(g) Turn the ignition switch ON, and wait for at least 60 seconds.

(h) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTCs B1632/81 and B1637/82 may be output at this time, but they are not related to this check.

Result

Proceed to

DTC B1637/82 is output.

A

DTC B1632/81 is output.

B

DTCs B1632/81 and B1637/82 are not output.

C

(i) Turn the ignition switch off.

(j) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(k) Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors.

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

REPLACE NO. 2 SIDE AIRBAG SENSOR LH

C

USE SIMULATION METHOD TO CHECK

    Side Airbag Sensor Assembly No.2 Lost Communication (RH) (B162B/85,B162C/85)
    DESCRIPTION The side collision sensor RH circuit (bus 2) consists of the airbag sensor assembly and floor side airbag sensor RH. The floor side airbag sensor RH detects impacts to the vehicle and ...

    Side Airbag Sensor Assembly No.2 (LH) (B163A/3A)
    DESCRIPTION The side collision sensor LH circuit (bus 2) consists of the airbag sensor assembly and floor side airbag sensor LH. The floor side airbag sensor LH detects impacts to the vehicle and ...

    Other materials:

    Toyota CH-R Service Manual > Front Brake: Reassembly
    REASSEMBLY PROCEDURE 1. TEMPORARILY TIGHTEN FRONT DISC BRAKE BLEEDER PLUG (a) Temporarily install the front disc brake bleeder plug to the front disc brake cylinder assembly. HINT: Fully tighten the front disc brake bleeder plug after bleeding the system. 2. INSTALL FRONT DISC BRAKE BLEEDER ...

    Toyota CH-R Owners Manual > Adjusting the seats: Front seats
    Adjustment procedure Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever Lumbar support adjustment switch (if equipped) WARNING■When adjusting the seat position Take care when adjusting the seat position to ensure that other pas ...

    © 2017-2019 Copyright www.tochr.net
    0.0189
