Toyota CH-R Service Manual: Air Conditioning Filter(for Valeo Made)

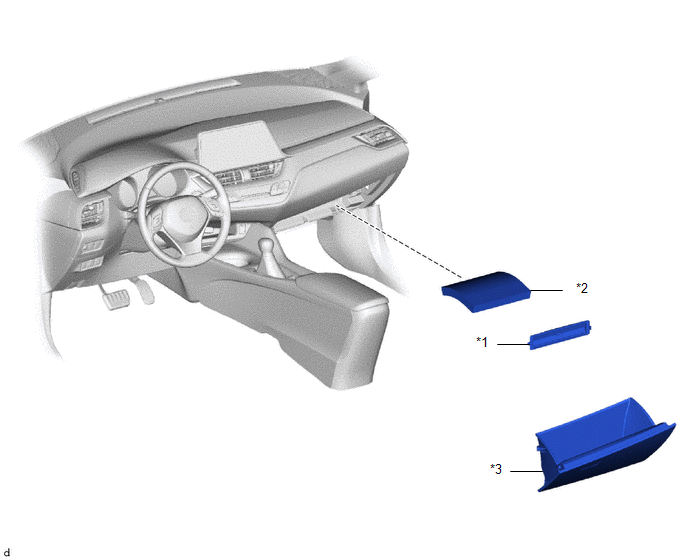

Components
COMPONENTS
ILLUSTRATION
|
*1 |
AIR FILTER COVER PLATE |
*2 |
CLEAN AIR FILTER |
|
*3 |
GLOVE COMPARTMENT DOOR ASSEMBLY |
- |
- |
Removal
REMOVAL
PROCEDURE
1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
.gif)
2. REMOVE AIR FILTER COVER PLATE

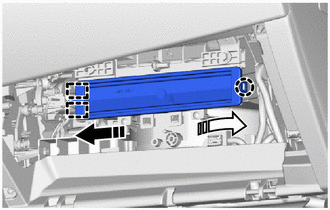

(a) Disengage the claw and guides to remove the air filter cover plate as shown in the illustration.
.png) |
Remove in this Direction (1) |
.png) |
Remove in this Direction (2) |
3. REMOVE CLEAN AIR FILTER

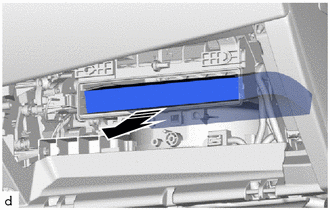

(a) Remove the clean air filter as shown in the illustration.
|
|
Remove in this Direction |
Installation
INSTALLATION
PROCEDURE
1. INSTALL CLEAN AIR FILTER

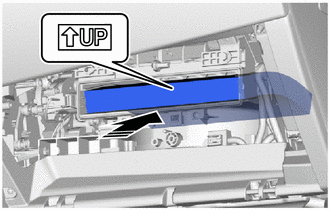

(a) Install the clean air filter as shown in the illustration.
.png) |
Install in this Direction |
NOTICE:
Make sure that the "UP" mark is facing the correct direction before installing the clean air filter.
2. INSTALL AIR FILTER COVER PLATE

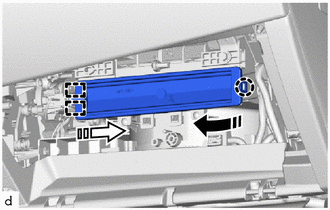

(a) Engage the guides and claw to install the air filter cover plate as shown in the illustration.
|
|
Install in this Direction (1) |
.png) |
Install in this Direction (2) |
3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
.gif)
