Toyota CH-R Service Manual: Air Conditioning Filter(for Denso Made)

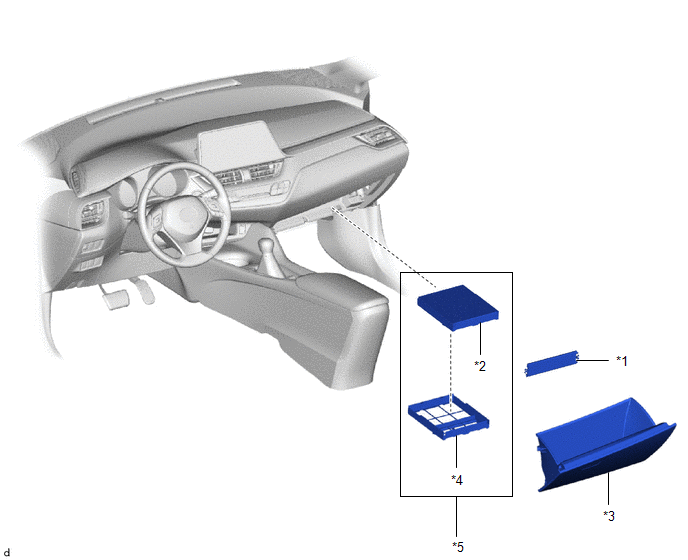

Components
COMPONENTS
ILLUSTRATION
|
*1 |
AIR FILTER COVER PLATE |
*2 |
CLEAN AIR FILTER |
|
*3 |
GLOVE COMPARTMENT DOOR ASSEMBLY |
*4 |
COOLIING UNIT PARTS |
|
*5 |
AIR FILTER SUB-ASSEMBLY |
- |
- |
Removal
REMOVAL
PROCEDURE
1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
.gif)
2. REMOVE AIR FILTER COVER PLATE

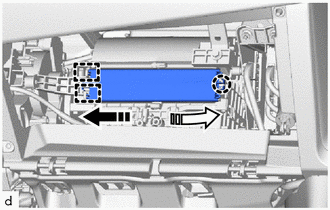

(a) Disengage the claw and guides to remove the air filter cover plate as shown in the illustration.
 |
Remove in this Direction (1) |
 |
Remove in this Direction (2) |
3. REMOVE CLEAN AIR FILTER
|

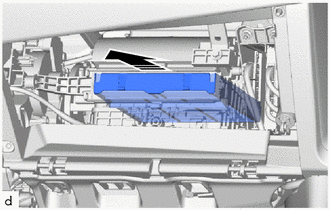

(a) Remove the air filter sub-assembly as shown in the illustration. |
|
|

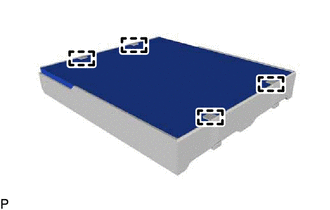

(b) Disengage the 4 guides to remove the clean air filter from the cooling unit parts. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL CLEAN AIR FILTER

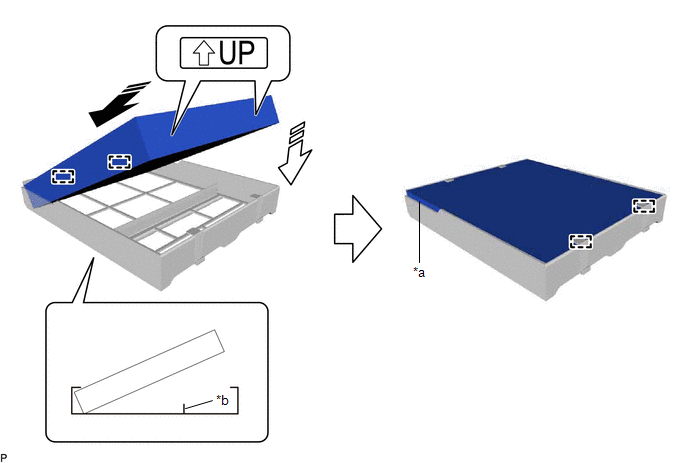

(a) Engage the guides on the cutout side of the cooling unit parts and then engage the guides as shown in the illustration to install the clean air filter.
|
*a |
Cutout |
*b |
Rib |
.png) |
Install in this Direction (1) |
.png) |
Install in this Direction (2) |
NOTICE:
- Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.
- Make sure that there is no clearance between the clean air filter and cooling unit parts and that the clean air filter is not deformed.
|

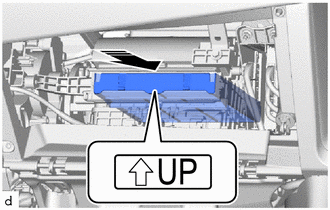

(b) Install the air filter sub-assembly as shown in the illustration. NOTICE: Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly. |
|
2. INSTALL AIR FILTER COVER PLATE

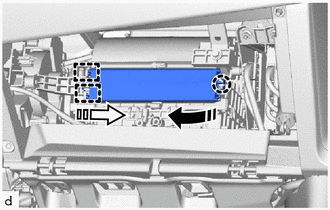

(a) Engage the guides and claw as indicated by the arrows, in the order shown in the illustration to install the air filter cover plate.
|
|
Install in this Direction (1) |
|
|
Install in this Direction (2) |
3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
.gif)
