PARTS LOCATION

ILLUSTRATION

*A

w/ PTC Heater

*B

w/ Toyota Safety Sense P

*1

AIR CONDITIONER PRESSURE SENSOR

*2

COMPRESSOR WITH PULLEY ASSEMBLY

*3

COOLER CONDENSER ASSEMBLY

*4

THERMISTOR ASSEMBLY

*5

PTC HTR NO. 1 RELAY

*6

PTC HTR NO. 2 RELAY

*7

PTC HTR NO. 3 RELAY

*8

FORWARD RECOGNITION CAMERA

*9

BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

*10

NO. 1 ENGINE ROOM RELAY BLOCK

*11

ECM

*12

POWER STEERING ECU ASSEMBLY

*13

NO. 2 RELAY BLOCK ASSEMBLY

*14

HTR FUSE

*15

PTC HTR NO. 1 FUSE

*16

PTC HTR NO. 2 FUSE

*17

PTC HTR NO. 3 FUSE

*18

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

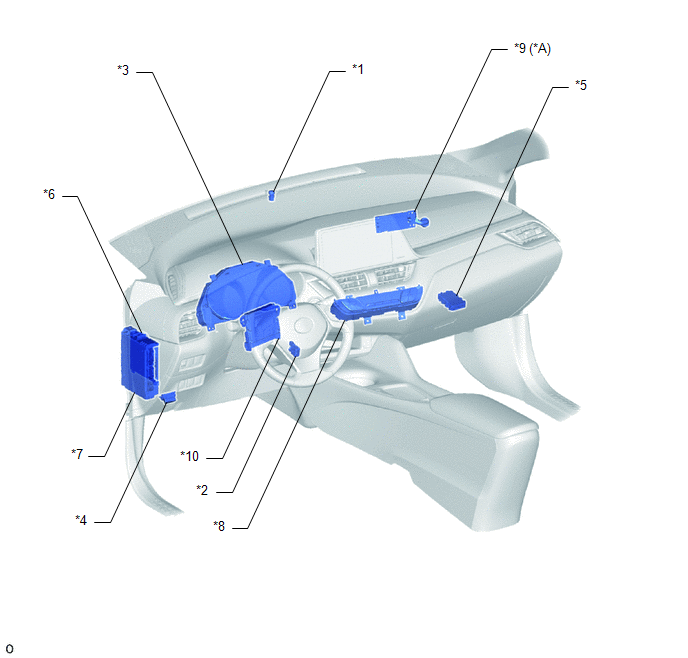

ILLUSTRATION

*A

w/ Ion Generator

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

*3

COMBINATION METER ASSEMBLY

*4

DLC3

*5

NETWORK GATEWAY ECU

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-B NO. 2 FUSE

- ECU-IG1 NO. 4 FUSE

- IG1-NO. 1 RELAY

*8

AIR CONDITIONING CONTROL ASSEMBLY

*9

ION GENERATOR SUB-ASSEMBLY

*10

AIR CONDITIONING AMPLIFIER ASSEMBLY

ILLUSTRATION

*A

w/ Toyota Safety Sense P

*B

w/ PTC Heater

*1

NO. 1 COOLER THERMISTOR (EVAPORATOR TEMPERATURE SENSOR)

*2

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

*3

QUICK HEATER ASSEMBLY

*4

AIR CONDITIONING RADIATOR ASSEMBLY

*5

BLOWER ASSEMBLY

*6

COOLER EXPANSION VALVE

*7

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

*8

HEATER RADIATOR UNIT SUB-ASSEMBLY

*9

BLOWER RESISTOR

-

-

ILLUSTRATION

*A

w/o Toyota Safety Sense P

-

-

*1

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

*2

NO. 1 COOLER THERMISTOR (EVAPORATOR TEMPERATURE SENSOR)

*3

AIR CONDITIONING RADIATOR ASSEMBLY

*4

BLOWER ASSEMBLY

*5

COOLER EXPANSION VALVE

*6

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

*7

HEATER RADIATOR UNIT SUB-ASSEMBLY

*8

BLOWER RESISTOR

ILLUSTRATION

*1

NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY (FRESH/RECIRCULATION)

*2

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FRONT PASSENGER SIDE UPPER AIR MIX)

*3

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (DRIVER SIDE UPPER AIR MIX)

*4

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (DRIVER SIDE LOWER AIR MIX)

*5

NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (MODE SWITCHING)

*6

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FRONT PASSENGER SIDE LOWER AIR MIX)

*7

AIR CONDITIONING HARNESS ASSEMBLY (HEATER RADIATOR UNIT SUB-ASSEMBLY)

*8

AIR CONDITIONING HARNESS ASSEMBLY (BLOWER ASSEMBLY)
