Toyota CH-R Service Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
NOTICE:
Take extra care when handling these precision electronic components.
PROCEDURE
1. REMOVE TRANSMITTER HOUSING COVER

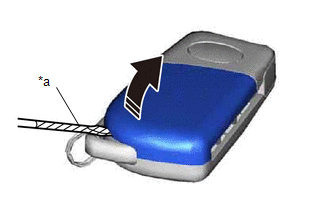

(a) Using a screwdriver with its tip wrapped in protective tape, remove the transmitter housing cover as shown in the illustration.
.png)
|
*a |
Protective Tape |
.png) |
Remove in this Direction |
NOTICE:
Do not use excessive force when prying apart the transmitter housing cover.
2. REMOVE DOOR CONTROL TRANSMITTER PACKING

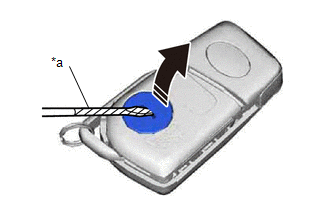

(a) Using a screwdriver with its tip wrapped in protective tape, remove the door control transmitter packing as shown in the illustration.
.png)
|
*a |
Protective Tape |
|
|
Remove in this Direction |
3. REMOVE TRANSMITTER BATTERY
(a) Using a screwdriver with its tip wrapped in protective tape, remove the transmitter battery as shown in the illustration.
.png)
|
*a |
Protective Tape |
|
|
Remove in this Direction |
NOTICE:
- Do not push the terminals with your finger.
- Do not forcibly pry up the transmitter battery as the terminals may be damaged.
- Do not touch the transmitter battery with wet hands. Moisture may cause rust.
- Do not touch or move any components inside the transmitter. It may interfere with proper operation.
- When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.
Components
COMPONENTS
ILLUSTRATION
*1
DOOR CONTROL TRANSMITTER PACKING
*2
TRANSMITTER BATTERY
*3
TRANSMITTER HOUSING COVER
* ...
Inspection
INSPECTION
PROCEDURE
1. INSPECT DOOR CONTROL TRANSMITTER
(a) Inspect operation of the door control transmitter assembly.
(1) Remove the transmitter battery from the door control transmitter assemb ...
