Toyota CH-R Service Manual: System Diagram
SYSTEM DIAGRAM
ELECTRICAL REMOTE CONTROL MIRROR FUNCTION (w/o Retract Mirror)
ELECTRICAL REMOTE CONTROL MIRROR FUNCTION (w/ Retract Mirror)

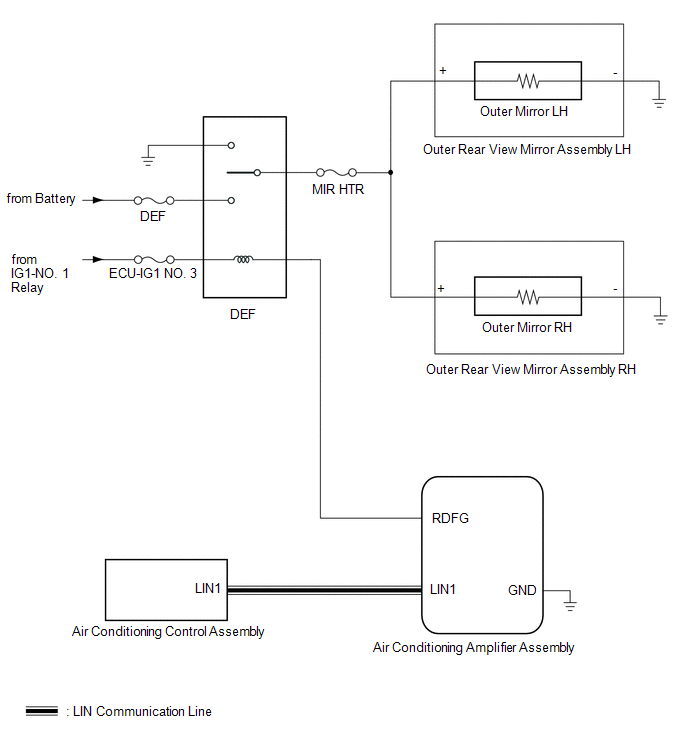

MIRROR HEATER FUNCTION
Communication Table
|
Sender |
Receiver |
Signal |
Communication Method |
|---|---|---|---|
|
Air Conditioning Control Assembly |
Air Conditioning Amplifier Assembly |
Mirror heater switch (rear window defogger switch) signal |
LIN |
Parts Location
PARTS LOCATION
ILLUSTRATION
*A
w/ Retract Mirror
-
-
*1
OUTER MIRROR SWITCH ASSEMBLY
*2
OUTER REAR VIE ...
System Description
SYSTEM DESCRIPTION
POWER MIRROR CONTROL SYSTEM DESCRIPTION
(a) This system has the following functions: electrical remote control mirror
function, power retract mirror function*, auto power retrac ...
