Toyota CH-R Service Manual: Rear Light Assembly(for Bulb Type)

Toyota CH-R Service Manual / Lighting (ext) / Rear Light Assembly(for Bulb Type)

Components

COMPONENTS

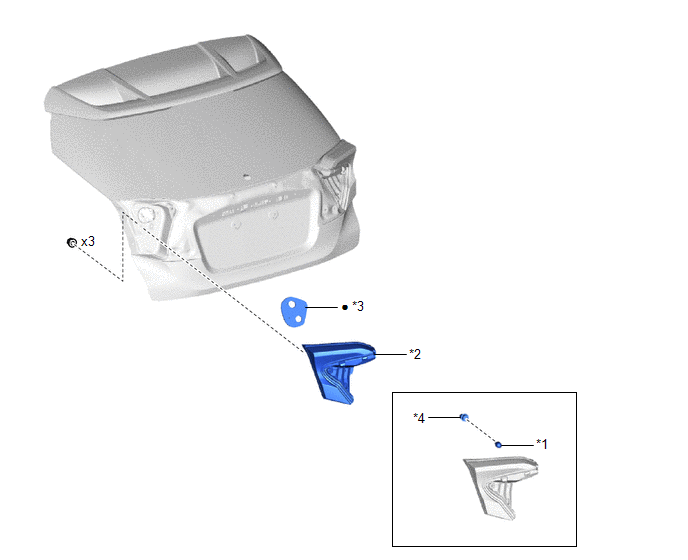

ILLUSTRATION

*1

BACK UP LIGHT BULB

*2

REAR LIGHT ASSEMBLY

*3

REAR LIGHT PACKING

*4

BACK UP LIGHT SOCKET

●

Non-reusable part

-

-

Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE BACK UP LIGHT BULB

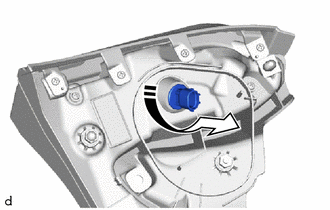

(a) Turn the rear back up light socket with the back up light bulb as shown in the illustration to remove it.

Remove in this Direction

(b) Remove the back up light bulb from the back up light socket as shown in the illustration.

Remove in this Direction

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE BACK DOOR OUTSIDE GARNISH

Click here

2. REMOVE REAR LIGHT ASSEMBLY

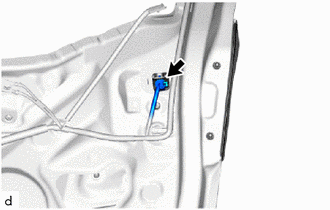

(a) Disconnect the connector.

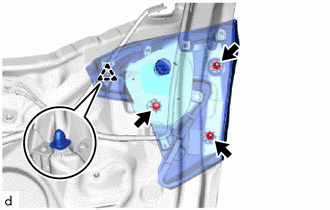

(b) Remove the 3 nuts.

(c) Disengage the clip to remove the rear light assembly.

3. REMOVE REAR LIGHT PACKING

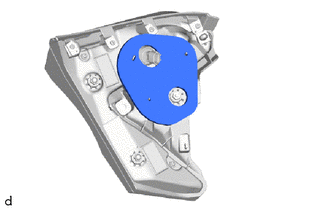

(a) Remove the rear light packing.

Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL BACK UP LIGHT BULB

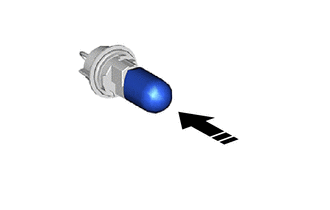

(a) Install the back up light bulb to the back up light socket as shown in the illustration.

Install in this Direction

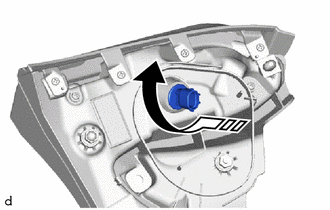

(b) Turn the rear back up light socket with the back up light bulb as shown in the illustration to install it.

Install in this Direction

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR LIGHT PACKING

(a) Install a new rear light packing.

2. INSTALL REAR LIGHT ASSEMBLY

(a) Engage the clip to install the rear light assembly.

(b) Install the 3 nuts.

(c) Disconnect the connector.

3. INSTALL BACK DOOR OUTSIDE GARNISH

Click here
