Toyota CH-R Service Manual: Rear Light Assembly(for Led Type)

Toyota CH-R Service Manual / Lighting (ext) / Rear Light Assembly(for Led Type)

Components

COMPONENTS

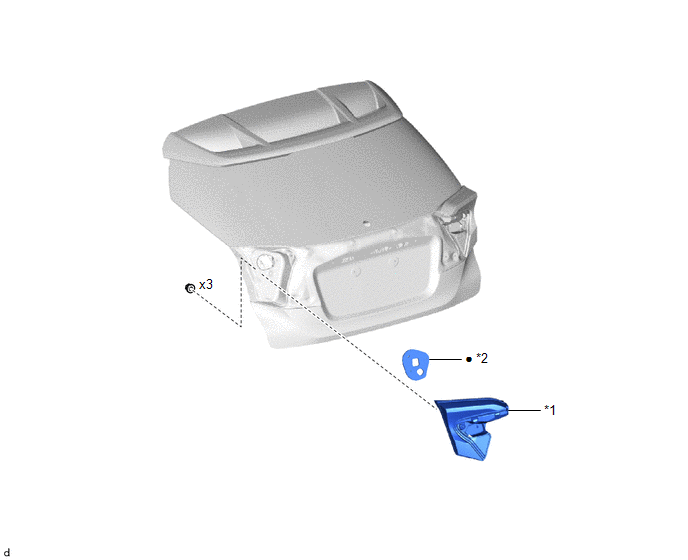

ILLUSTRATION

*1

REAR LIGHT ASSEMBLY

*2

REAR LIGHT PACKING

●

Non-reusable part

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE BACK DOOR OUTSIDE GARNISH

Click here

2. REMOVE REAR LIGHT ASSEMBLY

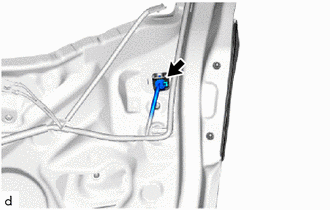

(a) Disconnect the connector.

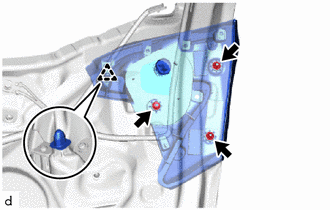

(b) Remove the 3 nuts.

(c) Disengage the clip to remove the rear light assembly.

3. REMOVE REAR LIGHT PACKING

(a) Remove the rear light packing.

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR LIGHT ASSEMBLY LH

(a) Apply battery voltage to the rear light assembly LH and check that the light comes on.

OK:

Condition

Specified Condition

Battery positive (+) → Terminal 3 (B)

Battery negative (-) → Terminal 2 (E)

Taillight comes on

If the result is not as specified, replace the rear combination light assembly LH.

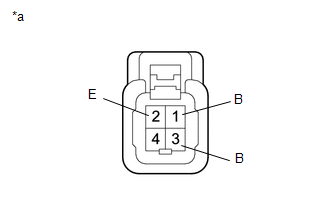

*a

Component without harness connected

(Rear Light Assembly LH)

(b) Apply battery voltage to the rear light assembly LH and check that the light comes on.

OK:

Condition

Specified Condition

Battery positive (+) → Terminal 1 (B)

Battery negative (-) → Terminal 2 (E)

Back-up light comes on

If the result is not as specified, replace the rear combination light assembly LH.

2. INSPECT REAR LIGHT ASSEMBLY RH

(a) Apply battery voltage to the rear light assembly RH and check that the light comes on.

OK:

Condition

Specified Condition

Battery positive (+) → Terminal 3 (B)

Battery negative (-) → Terminal 2 (E)

Taillight comes on

If the result is not as specified, replace the rear combination light assembly RH.

*a

Component without harness connected

(Rear Light Assembly RH)

(b) Apply battery voltage to the rear light assembly RH and check that the light comes on.

OK:

Condition

Specified Condition

Battery positive (+) → Terminal 1 (B)

Battery negative (-) → Terminal 2 (E)

Back-up light comes on

If the result is not as specified, replace the rear combination light assembly RH.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR LIGHT PACKING

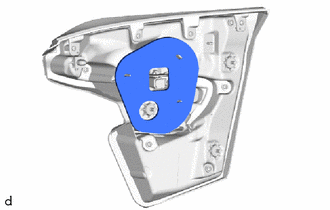

(a) Install a new rear light packing.

2. INSTALL REAR LIGHT ASSEMBLY

(a) Engage the clip to install the rear light assembly.

(b) Install the 3 nuts.

(c) Connect the connector.

3. INSTALL BACK DOOR OUTSIDE GARNISH

Click here
