Toyota CH-R Owners Manual: Location of the spare tire, jack and tools

Toyota CH-R. Steps to take in an emergency

  1. Towing eyelet
  2. Wheel nut wrench
  3. Jack
  4. Jack handle
  5. Spare tire
WARNING

■Using the tire jack Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury.

  • Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
  • Only use the tire jack that comes with this vehicle for replacing a flat tire.

    Do not use it on other vehicles, and do not use other tire jacks for replacing tires on this vehicle.

  • Put the jack properly in its jack point.Toyota CH-R. Steps to take in an emergency
  • Do not put any part of your body under the vehicle while it is supported by the jack.
  • Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
  • Do not raise the vehicle while someone is inside.
  • When raising the vehicle, do not put an object on or under the jack.
  • Do not raise the vehicle to a height greater than that required to replace the tire.
  • Use a jack stand if it is necessary to get under the vehicle.
  • When lowering the vehicle, make sure that there is no-one near the vehicle. If there are people nearby, warn them vocally before lowering.

Taking out the jack

1. Remove the deck board.

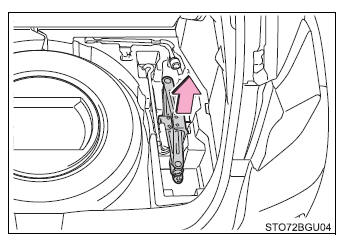

2. Take out the jack.

Toyota CH-R. Steps to take in an emergency

Taking out the spare tire

1. Remove the deck board.

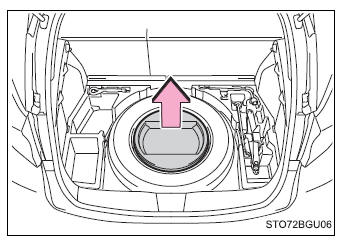

2. Remove the cushion.

Toyota CH-R. Steps to take in an emergency

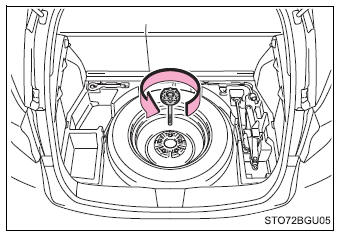

3. Loosen the center fastener that secures the spare tire.

Toyota CH-R. Steps to take in an emergency

WARNING

■When storing the spare tire Be careful not to catch fingers or other body parts between the spare tire and the body of the vehicle.

    If you have a flat tire
    Your vehicle is equipped with a spare tire. The flat tire can be replaced with the spare tire. For details about tires WARNING■If you have a flat tire Do not continue driving with a flat ...

    Replacing a flat tire
    1. Chock the tires. Flat tire Wheel chock positions Front Left-hand side Behind the rear right-hand side tire Right-hand side Behind the rear left-hand side t ...
