Toyota CH-R Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

(a) Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the 2 bolts and 2 nuts.

NOTICE:

  • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  • Insert the bolt with the threaded end facing the rear of the vehicle.

2. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(a) Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and nut.

NOTICE:

  • Insert the rear suspension toe adjust cam sub-assembly from the rear of the vehicle.
  • When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.

3. INSTALL REAR LOWER COIL SPRING INSULATOR

Click here

4. INSTALL REAR COIL SPRING

Click here

5. STABILIZE SUSPENSION

Click here

6. INSTALL REAR STABILIZER LINK ASSEMBLY

Click here

7. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

(a) Install the rear No. 1 suspension arm assembly with the 2 bolts.

Torque:

73 N·m {744 kgf·cm, 54 ft·lbf}

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

8. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(a) Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque:

73 N·m {744 kgf·cm, 54 ft·lbf}

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

9. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)

Click here

10. INSTALL REAR WHEEL

Click here

11. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(a) Lower the vehicle to the ground.

(b) Bounce the vehicle up and down at the corners to stabilize the rear suspension.

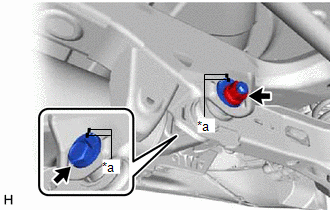

(c) Align the matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

*a

Matchmark

(d) Fully tighten the nut.

Torque:

100 N·m {1020 kgf·cm, 74 ft·lbf}

NOTICE:

  • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
  • Make sure that the vehicle is unloaded when fully tightening the nut.

12. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Click here

13. PERFORM INITIALIZATION (w/ Height Control Sensor)

Click here
