Toyota CH-R Owners Manual: Child restraint system fixed with a seat belt

Toyota CH-R Owners Manual / For safety and security / Child safety / Child restraint systems / Child restraint system fixed with a seat belt

A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt.

Installing child restraint system using a seat belt (child restraint lock function belt)

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

■ Rear-facing - Infant seat/convertible seat

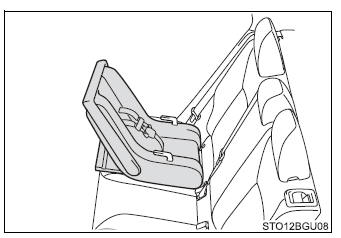

1. Place the child restraint system on the rear seat facing the rear of the vehicle.

Toyota CH-R. Child safety

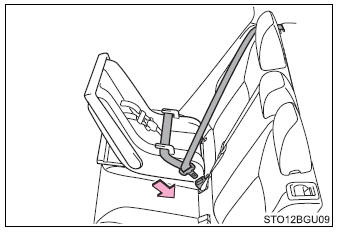

2. Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

Toyota CH-R. Child safety

3. Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

Toyota CH-R. Child safety

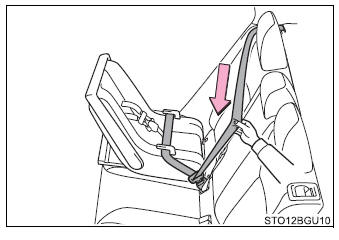

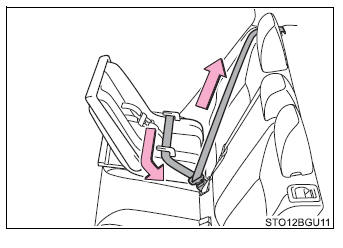

4. While pushing the child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

Toyota CH-R. Child safety

5. After installing the child restraint system, rock it back and forth to ensure that it is installed securely.

■ Forward-facing - Convertible seat

1. If installing the child restraint system to the front passenger seat is unavoidable, refer to for front passenger seat adjustment.

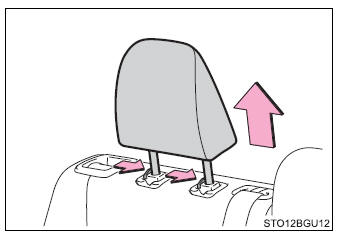

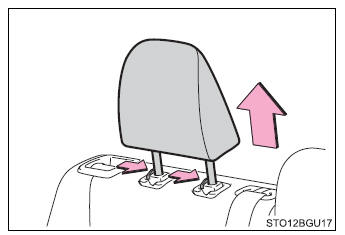

2. If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint.

Toyota CH-R. Child safety

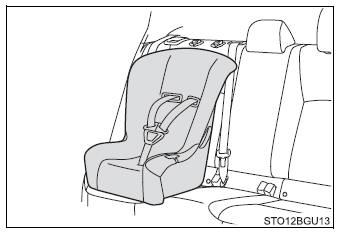

3. Place the child restraint system on the seat facing the front of the vehicle.

Toyota CH-R. Child safety

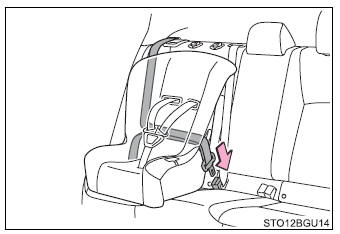

4. Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

Toyota CH-R. Child safety

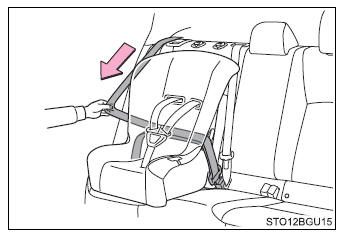

5. Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

Toyota CH-R. Child safety

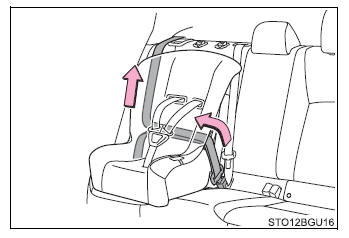

6. While pushing the child restraint system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

7. If the child restraint has a top tether strap, follow the child restraint manufacturer's operation manual regarding the installation, using the top tether strap to latch onto the top tether strap anchor.

8. After installing the child restraint system, rock it back and forth to ensure that it is installed securely.

Toyota CH-R. Child safety

■ Booster seat

1. If installing the child restraint system to the front passenger seat is unavoidable, refer to for front passenger seat adjustment.

2. High back type: If the head restraint interferes with your child restraint system, and the head restraint can be removed, remove the head restraint.

Toyota CH-R. Child safety

3. Place the child restraint system on the seat facing the front of the vehicle.

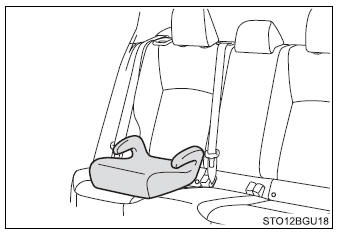

Booster type

Toyota CH-R. Child safety

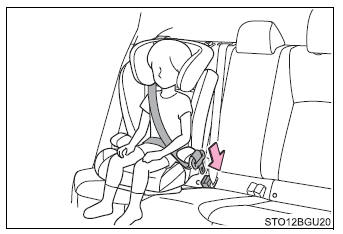

4. Sit the child in the child restraint system. Fit the seat belt to the child restraint system according to the manufacturer's instructions and insert the plate into the buckle. Make sure that the belt is not twisted.

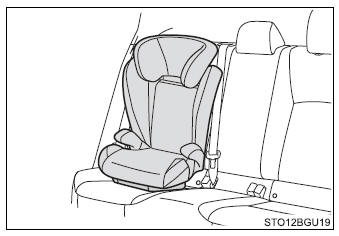

High back type

Toyota CH-R. Child safety

Toyota CH-R. Child safety

Check that the shoulder belt is correctly positioned over the child's shoulder and that the lap belt is as low as possible.

Removing a child restraint system installed with a seat belt

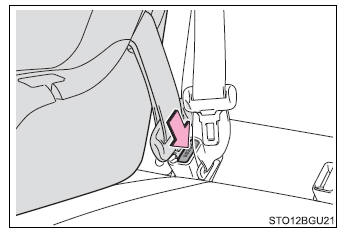

Press the buckle release button and fully retract the seat belt.

When releasing the buckle, the child restraint system may spring up due to the rebound of the seat cushion. Release the buckle while holding down the child restraint system.

Since the seat belt automatically reels itself, slowly return it to the stowing position.

Toyota CH-R. Child safety

WARNING

■When installing a child restraint system Observe the following precautions.

Failure to do so may result in death or serious injury.

  • Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child's neck, it may lead to choking or other serious injuries that could result in death.

    If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

  • Ensure that the belt and plate are securely locked and the seat belt is not twisted.
  • Shake the child restraint system left and right, and forward and backward to ensure that it has been securely installed.
  • After securing a child restraint system, never adjust the seat.
  • When a booster seat is installed, always ensure that the shoulder belt is positioned across the center of the child's shoulder. The belt should be kept away from the child's neck, but not so that it could fall off the child's shoulder.
  • Follow all installation instructions provided by the child restraint system manufacturer.
  • When securing some types of child restraint systems in rear seats, it may not be possible to properly use the seat belts in positions next to the child restraint without interfering with it or affecting seat belt effectiveness. Be sure your seat belt fits snugly across your shoulder and low on your hips. If it does not, or if it interferes with the child restraint, move to a different position. Failure to do so may result in death or serious injury.

■When installing a booster seat To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child.

■Do not use a seat belt extender If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of sudden braking, sudden swerving or an accident.

    When using a child restraint system
    ■ When installing a child restraint system to a front passenger seat For the safety of a child, install a child restraint system to a rear seat. When installing child restraint system to a front ...

    Child restraint system fixed with a child restraint LATCH anchor
    ■ Child restraint LATCH anchors LATCH anchors are provided for the rear outboard seats. (Buttons displaying the location of the anchors are attached to the seats.) ■ When installing in the ...
