Toyota CH-R Service Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the black out tape removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Disconnect cable from negative battery terminal |
Initialize back door lock |
Power door lock control system |
|
|
Memorize steering angle neutral point |
Lane departure alert system (w/ Steering Control) |
|
|
|
Pre-collision system |
|||
|
Initialize Power Window Control System |
|
|
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here
.gif)
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Click here
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Click here
3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
Click here
4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL
Click here
5. REMOVE REAR DOOR REAR FRAME BRACKET
Click here
6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Click here
7. REMOVE REAR DOOR BELT REAR SEAL
Click here
8. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP
Click here
9. REMOVE REAR DOOR BELT SEAL
Click here
10. REMOVE REAR DOOR SERVICE HOLE COVER
Click here
11. REMOVE REAR DOOR WEATHERSTRIP
Click here
12. REMOVE REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY
Click here
13. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Click here
14. REMOVE REAR DOOR FRAME GARNISH
Click here
15. REMOVE REAR DOOR GLASS RUN
Click here
16. REMOVE REAR DOOR QUARTER WINDOW GLASS
Click here
17. REMOVE REAR DOOR LOWER OUTSIDE STRIPE
HINT:
When removing the rear door lower outside stripe, heat the vehicle body and rear door lower outside stripe using a heat light.
Heating Temperature|
Item |
Temperature |
|---|---|
|
Rear Door Lower Outside Stripe and Vehicle Body |
40 to 60°C (104 to 140°F) |

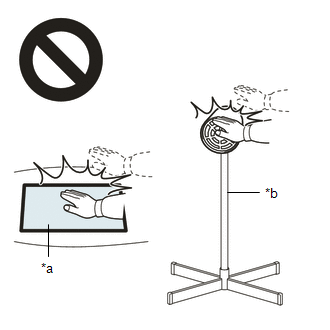

CAUTION:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
.png)
|
*a |
Heated Part |
|
*b |
Heat Light |
NOTICE:
Do not heat the vehicle body excessively.

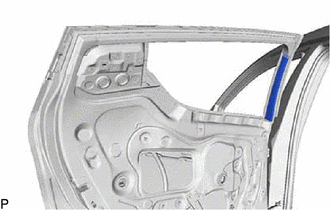

(a) Using a heat light, heat the rear door lower outside stripe and vehicle body.
|
(b) Pull back on one of the ends of the rear door lower outside stripe to remove it. HINT: When pulling on the rear door lower outside stripe, pull it parallel to the vehicle body. |
|
18. REMOVE REAR DOOR OUTSIDE STRIPE
HINT:
When removing the rear door outside stripe, heat the vehicle body and rear door outside stripe using a heat light.
Heating Temperature|
Item |
Temperature |
|---|---|
|
Rear Door Outside Stripe and Vehicle Body |
40 to 60°C (104 to 140°F) |
CAUTION:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
|
*a |
Heated Part |
|
*b |
Heat Light |
NOTICE:
Do not heat the vehicle body excessively.

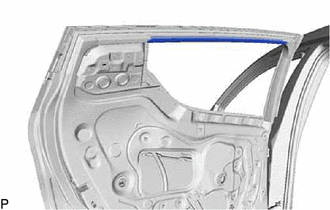

(a) Using a heat light, heat the rear door outside stripe and vehicle body.
|
(b) Pull back on one of the ends of the rear door outside stripe to remove it. HINT: When pulling on the rear door outside stripe, pull it parallel to the vehicle body. |
|
Components
COMPONENTS
ILLUSTRATION
*1
REAR DOOR BELT REAR SEAL
*2
REAR DOOR BELT SEAL
*3
REAR DOOR GLASS INNER WEATHERSTRIP
...
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE
1. REPAIR INSTRUCTION
Click ...
