Toyota CH-R Service Manual: System Diagram

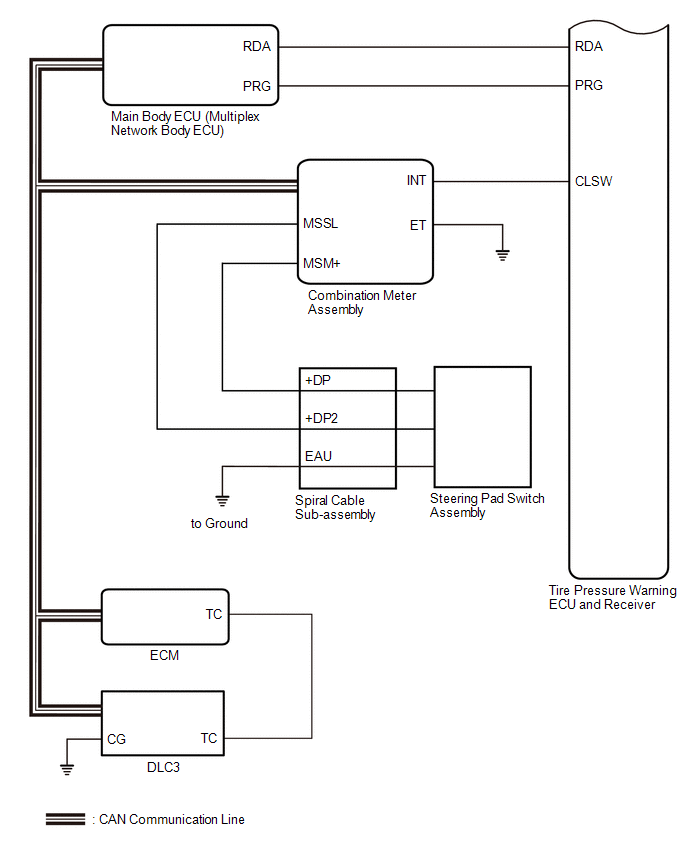

SYSTEM DIAGRAM
HINT:
Each tire pressure warning valve and transmitter sends its transmitter ID, temperature and tire pressure information to the tire pressure warning ECU and receiver.
|
Transmitting ECU (Transmitter) |
Receiving ECU |
Signal |
Communication Method |
|---|---|---|---|
|
Combination Meter Assembly |
Main Body ECU (Multiplex Network Body ECU) |
Vehicle speed signal |
CAN communication line |
|
Main Body ECU (Multiplex Network Body ECU) |
Combination Meter Assembly |
Tire pressure warning light signal |
CAN communication line |
Parts Location
PARTS LOCATION
ILLUSTRATION
*A
w/ Full Size Spare Tire
-
-
*1
TIRE PRESSURE WARNING ECU AND RECEIVER
*2
...
System Description
SYSTEM DESCRIPTION
DESCRIPTION OF SYSTEM
(a) The tire pressure warning system warns the driver when the tire pressure
has decreased in order to decrease CO2 emissions and enhance safety.
(b) The ...
