COMPONENTS

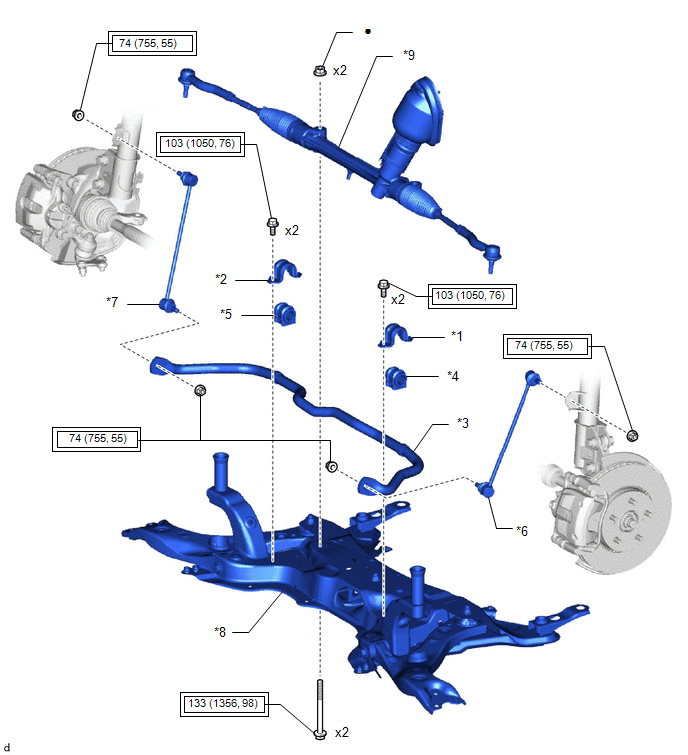

ILLUSTRATION
|
*1 |
FRONT NO. 1 STABILIZER BRACKET LH |
*2 |
FRONT NO. 1 STABILIZER BRACKET RH |
|
*3 |
FRONT STABILIZER BAR |
*4 |
FRONT STABILIZER BAR BUSHING LH |
|
*5 |
FRONT STABILIZER BAR BUSHING RH |
*6 |
FRONT STABILIZER LINK ASSEMBLY LH |
|
*7 |
FRONT STABILIZER LINK ASSEMBLY RH |
*8 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
|
*9 |
STEERING LINK ASSEMBLY |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
