Components
COMPONENTS

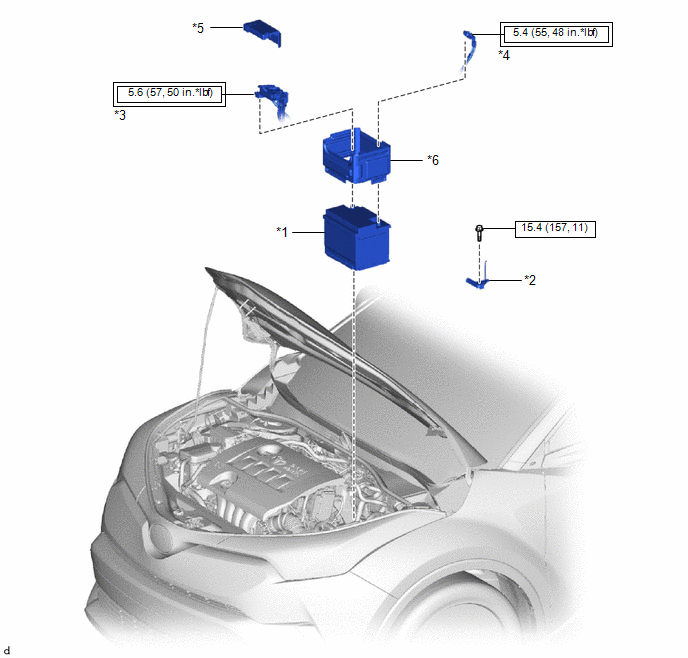

ILLUSTRATION
|
*1 |
BATTERY |
*2 |
NO. 2 BATTERY CLAMP |
|
*3 |
POSITIVE BATTERY TERMINAL |
*4 |
NEGATIVE BATTERY TERMINAL |
|
*5 |
FUSIBLE LINK COVER |
*6 |
BATTERY INSULATOR |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Charging SystemToyota CH-R Service Manual > Outer Mirror Switch: Installation
INSTALLATION
PROCEDURE
1. INSTALL OUTER MIRROR SWITCH ASSEMBLY
(a) Engage the claws to install the outer mirror switch assembly.
2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER
PANEL
Click here
...
Toyota CH-R Service Manual > Vehicle Stability Control System: ABS Warning Light does not Come ON
DESCRIPTION
The skid control ECU (brake actuator assembly) is connected to the combination
meter assembly via CAN communication.
CAUTION / NOTICE / HINT
NOTICE:
When replacing the skid control ECU (brake actuator assembly), perform system
variant learning.
Click here
PROCEDURE
...
