COMPONENTS

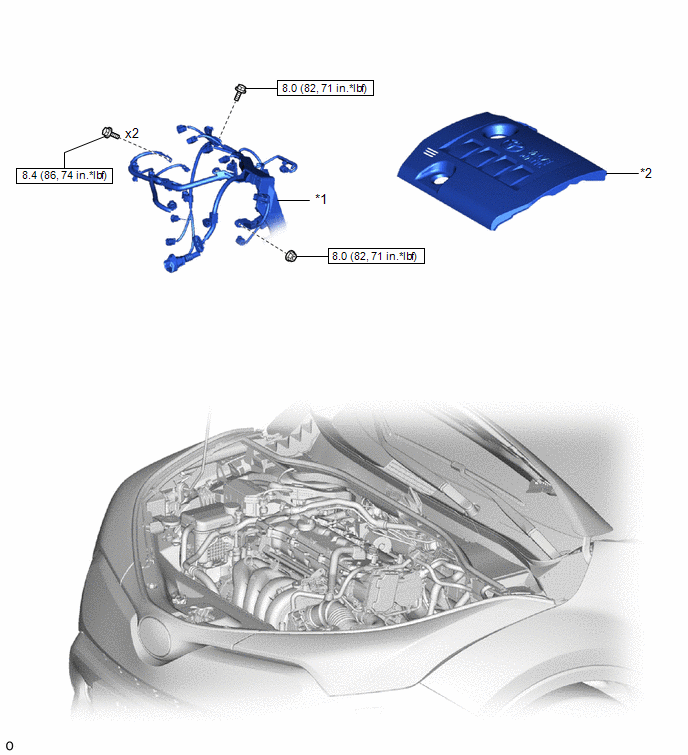

ILLUSTRATION

*1

ENGINE WIRE

*2

NO. 2 CYLINDER HEAD COVER

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

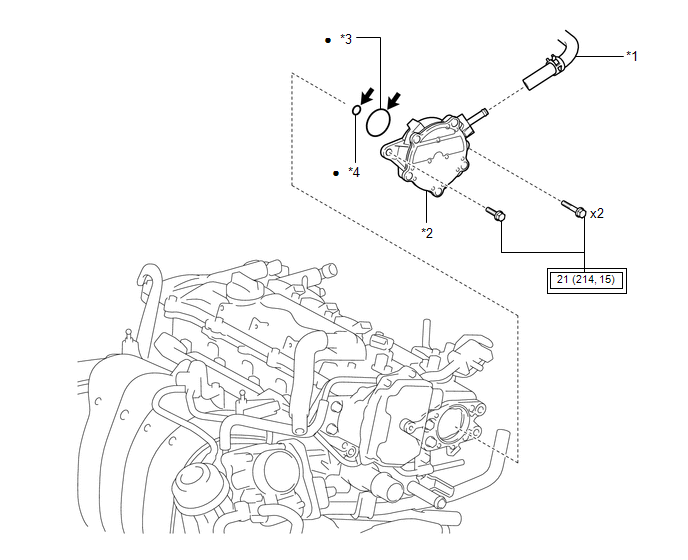

ILLUSTRATION

*1

UNION TO CONNECTOR TUBE HOSE

*2

VACUUM PUMP ASSEMBLY

*3

NO. 2 O-RING

*4

NO. 3 O-RING

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Engine oil

-

-

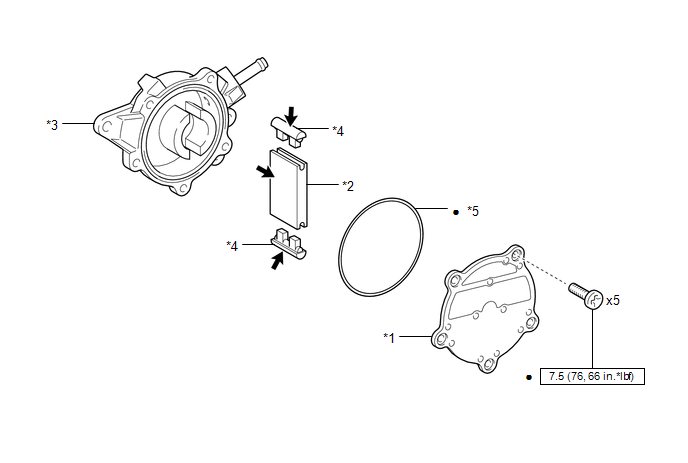

ILLUSTRATION

*1

END COVER

*2

VACUUM PUMP VANE

*3

VACUUM PUMP HOUSING

*4

VACUUM PUMP VANE CAP

*5

NO. 1 O-RING

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Engine oil

-

-
