Toyota CH-R Service Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL OCCUPANT DETECTION ECU
|

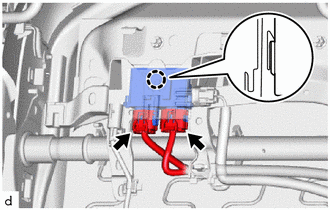

(a) Engage the claw to install the occupant detection ECU. NOTICE: If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one. |
|
(b) Connect the 2 connectors.
NOTICE:
When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
2. INSTALL FRONT SEAT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Click here .gif)
3. PERFORM DIAGNOSTIC SYSTEM CHECK
Click here
4. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
Click here
