Toyota CH-R Service Manual: Components

COMPONENTS

ILLUSTRATION

*A

w/ Package Tray Trim

*B

w/ Tonneau Cover

*1

PACKAGE TRAY TRIM PANEL ASSEMBLY

*2

TONNEAU COVER ASSEMBLY

ILLUSTRATION

*A

for Type A

*B

for Type B

*1

DECK BOARD ASSEMBLY

-

-

ILLUSTRATION

*A

for Type A

*B

for Type B

*1

SPARE WHEEL CUSHION

-

-

ILLUSTRATION

*A

for Type A

*B

for Type B

*1

DECK FLOOR BOX LH

*2

DECK FLOOR BOX RH

ILLUSTRATION

*A

w/o Rear Seat Side Airbag

*B

w/ Rear Seat Side Airbag

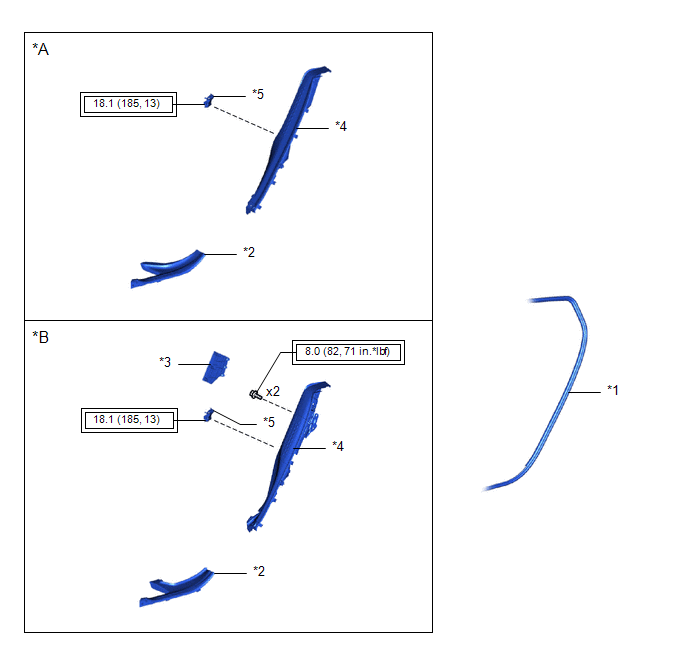

*1

REAR DOOR OPENING TRIM WEATHERSTRIP

*2

REAR DOOR SCUFF PLATE

*3

REAR PILLAR COVER

*4

REAR SEAT SIDE GARNISH

*5

REAR SEATBACK HINGE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*A

w/ Hook

*B

w/o Hook

*1

DECK TRIM REAR COVER

*2

DECK TRIM SIDE PANEL ASSEMBLY

*3

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

*4

ROOF SIDE INNER GARNISH ASSEMBLY

*5

LUGGAGE HOLD BELT STRIKER ASSEMBLY

-

-

Non-reusable part

-

-

ILLUSTRATION

*A

for RH Side

*B

for LH Side

*1

REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

*2

REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

*3

OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY LH

*4

OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY RH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

    Rear Seat Outer Belt Assembly
    ...

    On-vehicle Inspection
    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: Be sure to correctly follow the removal and installation procedures for the rear 3 point type seat outer belt assembly. PROCEDURE 1. INSPE ...
