Toyota CH-R Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front seat inner belt assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Disconnect cable from negative battery terminal

Initialize back door lock

Power door lock control system

Memorize steering angle neutral point

Lane departure alert system (w/ Steering Control)

Pre-collision system

CAUTION:

  • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the driver side and front passenger side.
  • The procedure listed below is for the driver side.

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY

Click here

2. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

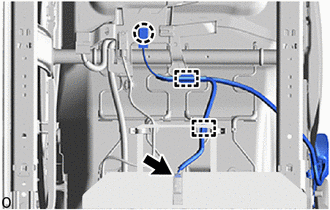

(a) w/o Occupant Classification System:

(1) Disengage the clamp and claw.

(b) w/ Occupant Classification System:

(1) Disconnect the connector.

(2) Disengage the clamp and claw.

(c) Disengage the clamps.

(d) Remove the nut and front seat inner belt assembly.

(e) Remove the front seat belt anchor plate.

3. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

(a) w/o Occupant Classification System:

(1) Disconnect the connector.

(2) Disengage the clamps and claw.

(3) Disengage the clamp.

(4) Remove the nut and front seat inner belt assembly.

(5) Remove the front seat belt anchor plate.

(b) w/ Occupant Classification System:

(1) Disengage the clamp and claw.

(2) Disengage the clamps.

(3) Remove the nut and front seat inner belt assembly.

(4) Remove the front seat belt anchor plate.
