Toyota CH-R Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

1. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

(a) Remove the rear seat headrest assembly.

2. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)

(a) Remove the rear seat headrest assembly.

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

(a) Remove the rear seat center headrest assembly.

4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

(a) Using a screwdriver with its tip wrapped in protective tape, disconnect the rear center seat outer belt assembly as shown in the illustration.

*a

Protective Tape

Insert Screwdriver Here

5. REMOVE REAR SEATBACK ASSEMBLY RH

(a) Fold the rear seatback assembly RH forward.

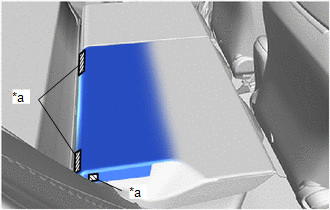

(b) Disengage the hook and loop fasteners.

*a

Hook and Loop Fastener

(c) Remove the 2 bolts.

(d) Disengage the guides to remove the rear seatback assembly RH.

NOTICE:

Be careful not to damage the vehicle body.

6. REMOVE REAR SEATBACK ASSEMBLY LH

(a) Fold the rear seatback assembly LH forward.

(b) Disengage the hook and loop fasteners.

*a

Hook and Loop Fastener

(c) Remove the 2 bolts.

(d) Disengage the guides to remove the rear seatback assembly LH.

NOTICE:

Be careful not to damage the vehicle body.

7. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

(a) Lift the front edge of the bench type rear seat cushion assembly as shown in the illustration and disengage the rear seat cushion frame hooks on the front side of the bench type rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

*a

Rear Seat Cushion Frame Hook Front Side

*b

Rear Seat Cushion Frame Hook Rear Side

Place Hands Here

Remove in this Direction (1)

Remove in this Direction (2)

Standard Measurement:

Area

Measurement

A

10 mm (0.394 in.)

(b) Disengage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.

8. REMOVE REAR SEAT CUSHION LOCK HOOK

(a) Disengage the claws to remove the rear seat cushion lock hook as shown in the illustration.

Remove in this Direction

HINT:

Use the same procedure for the RH side and LH side.
