Toyota CH-R Service Manual: Components

COMPONENTS

ILLUSTRATION

*1

FRONT INNER SEAT TRACK BRACKET COVER

*2

FRONT OUTER SEAT TRACK BRACKET COVER

*3

FRONT SEAT ASSEMBLY

*4

FRONT SEAT HEADREST ASSEMBLY

*5

INNER SEAT TRACK BRACKET COVER

*6

OUTER SEAT TRACK COVER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*A

w/ Seat Position Airbag Sensor

-

-

*1

SEAT POSITION AIRBAG SENSOR

*2

SEAT SLIDE POSITION SENSOR PROTECTOR

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

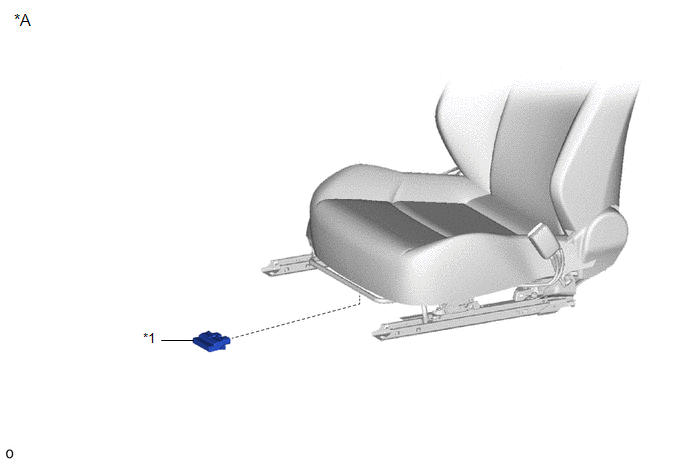

ILLUSTRATION

*A

w/ Seat Heater System

-

-

*1

SEAT HEATER CONTROL SUB-ASSEMBLY

-

-

ILLUSTRATION

*A

w/ Occupant Classification System

-

-

*1

OCCUPANT DETECTION ECU

-

-

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT SEAT INNER BELT ASSEMBLY

*2

FRONT SEAT BELT ANCHOR PLATE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*C

w/ Lower Seat Track Spacer

*D

w/ Vertical Adjuster

*1

FRONT SEAT CUSHION SHIELD

*2

FRONT SEAT INNER CUSHION SHIELD

*3

RECLINING ADJUSTER RELEASE HANDLE

*4

RECLINING HINGE OUTER COVER

*5

SEAT ADJUSTER COVER CAP

*6

VERTICAL ADJUSTER BRACKET COVER

*7

VERTICAL ADJUSTING HANDLE

*8

LOWER NO. 4 SEAT TRACK SPACER

*9

LOWER NO. 3 SEAT TRACK SPACER

*10

LOWER NO. 1 SEAT TRACK SPACER

*11

LOWER NO. 2 SEAT TRACK SPACER

-

-

ILLUSTRATION

*A

w/ Lumbar Support

-

-

*1

FRONT LUMBAR POWER SEAT SWITCH

-

-

ILLUSTRATION

*1

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*1

FRONT SEAT HEADREST SUPPORT

*2

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

ILLUSTRATION

*A

w/ Seat Heater System

-

-

*1

FRONT SEATBACK HEATER ASSEMBLY

*2

SEPARATE TYPE FRONT SEATBACK COVER

*3

SEPARATE TYPE FRONT SEATBACK PAD

*4

TAG PIN

Non-reusable part

-

-

ILLUSTRATION

*1

FRONT SEAT AIRBAG ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*A

w/ Lumbar Support

*B

w/o Lumbar Support

*1

FRONT SEATBACK HOOK

*2

FRONT SEATBACK SPRING SUB-ASSEMBLY

*3

LUMBAR SUPPORT ADJUSTER ASSEMBLY

*4

NO. 2 FRONT SEAT WIRE

*5

FRONT SEATBACK EDGE PROTECTOR

*6

FRONT SEATBACK FRAME SUB-ASSEMBLY

ILLUSTRATION

*1

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

ILLUSTRATION

*A

w/ Seat Heater System

-

-

*1

FRONT SEAT CUSHION HEATER ASSEMBLY

*2

SEPARATE TYPE FRONT SEAT CUSHION COVER

*3

SEPARATE TYPE FRONT SEAT CUSHION PAD

*4

TAG PIN

Non-reusable part

-

-

ILLUSTRATION

*A

w/ Occupant Classification System

-

-

*1

FRONT SEAT CUSHION AIRBAG ASSEMBLY RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*C

w/ Vertical Adjuster

*D

w/o Seat Heater System

*1

CONNECTOR HOLDER

*2

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

*3

FRONT SEAT CUSHION WIRE HARNESS HOLDER

*4

FRONT SEAT LOWER CUSHION SHIELD

*5

FRONT SEAT LOWER CUSHION SHIELD LH

*6

FRONT SEAT WIRE

*7

LH SEAT RECLINING ADJUSTER INSIDE COVER LH

*8

LH SEAT RECLINING ADJUSTER INSIDE COVER RH

*9

NO. 2 REAR UPPER SEAT TRACK COVER

*10

REAR UPPER SEAT TRACK COVER

*11

RH SEAT RECLINING ADJUSTER INSIDE COVER LH

*12

RH SEAT RECLINING ADJUSTER INSIDE COVER RH

*13

SEAT TRACK ADJUSTING HANDLE

*14

SEAT TRACK UPPER RAIL COVER

*15

WIRING HARNESS CONNECTOR

*16

FRONT SEAT ADJUSTER ASSEMBLY

    Precaution
    PRECAUTION HINT: The following procedures are used to prevent wrinkles from forming when installing the seat cover. Make sure to follow the procedures correctly. The sha ...

    Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during th ...
