COMPONENTS
ILLUSTRATION
|
*1 |
COWL SIDE TRIM BOARD LH |
*2 |
FRONT DOOR SCUFF PLATE LH |
|
*3 |
INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
*4 |
INSTRUMENT PANEL BOX ASSEMBLY |
|
*5 |
INSTRUMENT PANEL LOWER CENTER FINISH PANEL |
*6 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

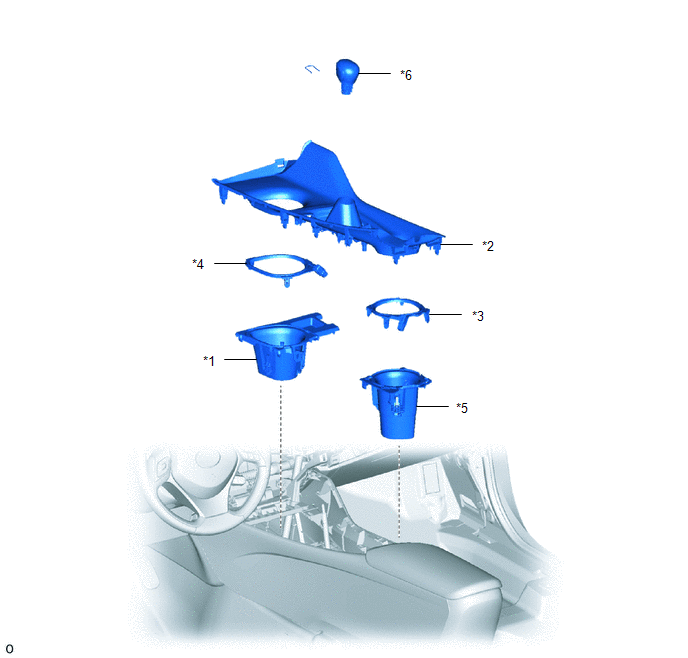

ILLUSTRATION
|
*1 |
CONSOLE BOX CUP HOLDER |
*2 |
CONSOLE UPPER PANEL SUB-ASSEMBLY |
|
*3 |
INSTRUMENT CLUSTER FINISH PANEL CENTER GARNISH |
*4 |
INSTRUMENT CLUSTER FINISH PANEL GARNISH |
|
*5 |
NO. 2 CONSOLE BOX CUP HOLDER |
*6 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
