Toyota CH-R Service Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the air conditioning amplifier assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effects / Inoperative when not performed |
Link |
|---|---|---|---|
|
Air conditioning amplifier assembly |
Initialize servo motor (Air conditioning system) |
DTCs are stored |
for VALEO Made:
for DENSO Made:
|
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
.gif)
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

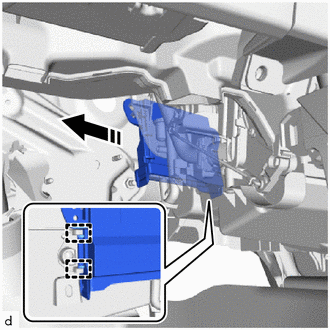

(a) for VALEO Made:
|
(1) Remove the screw. |
|
(2) Disengage the guides to remove the air conditioning amplifier assembly as shown in the illustration.
.png) |
Remove in this Direction |
|
(3) Disconnect each connector. |
|
(b) for DENSO Made:
|
(1) Remove the screw. |
|
(2) Disengage the guide to remove the air conditioning amplifier assembly as shown in the illustration.
|
|
Remove in this Direction (1) |
.png) |
Remove in this Direction (2) |
|
(3) Disconnect each connector. |
|
