Toyota CH-R Service Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
(a) for VALEO Made:
(1) Connect each connector.

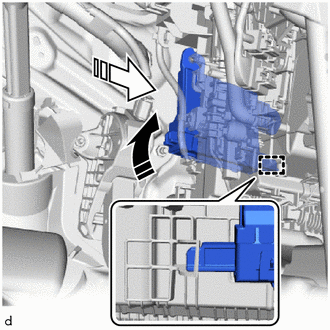

(2) Engage the guides to install the air conditioning amplifier assembly as shown in the illustration.
.png) |
Install in this Direction |
(3) Install the screw.
(b) for DENSO Made:
(1) Connect each connector.
(2) Align the lower part of the air conditioning amplifier assembly with the rib of the air conditioner unit assembly and engage the guide as shown in the illustration.
|
|
Install in this Direction (1) |
.png) |
Install in this Direction (2) |
|
(3) Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged. |
|
(4) Install the screw.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
.gif)
3. INSTALL COWL SIDE TRIM BOARD LH
Click here
4. INSTALL FRONT DOOR SCUFF PLATE LH
Click here
Components
COMPONENTS
ILLUSTRATION
*A
for DENSO Made
*B
for VALEO Made
*1
AIR CONDITIONING AMPLIFIER ASSEMBLY
*2
...
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration)
that must be performed after parts are removed and installed, or replaced during ...
