Toyota CH-R Service Manual: Components

COMPONENTS

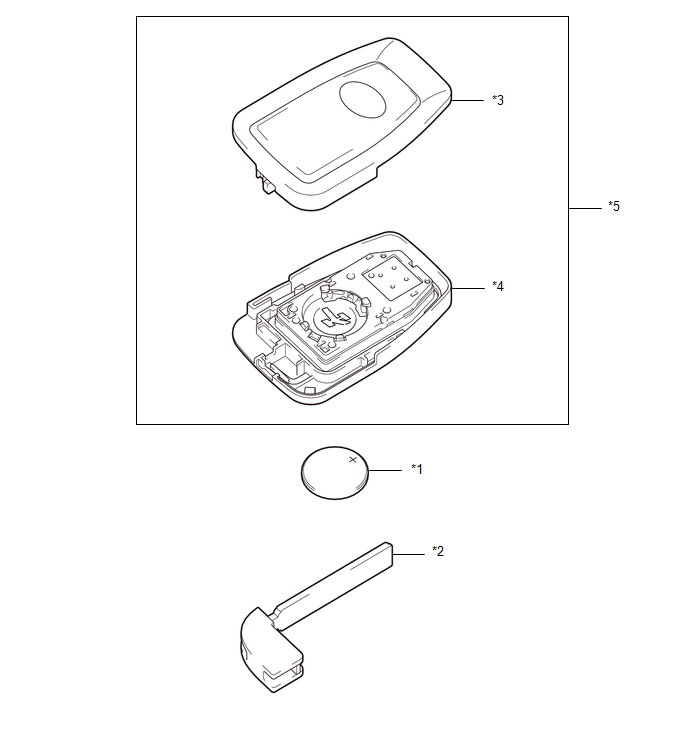

ILLUSTRATION

*1

TRANSMITTER BATTERY

*2

MECHANICAL KEY

*3

TRANSMITTER HOUSING COVER

*4

TRANSMITTER HOUSING CASE

*5

SMART KEY DOOR CONTROL TRANSMITTER HOUSING SET

-

-

    Door Control Transmitter(w/ Smart Key System)
    ...

    Removal
    REMOVAL CAUTION / NOTICE / HINT NOTICE: Take extra care when handling these precision electronic components. PROCEDURE 1. REMOVE TRANSMITTER BATTERY (a) Slide the release hook knob to remove the ...
