Toyota CH-R Service Manual: Components
COMPONENTS

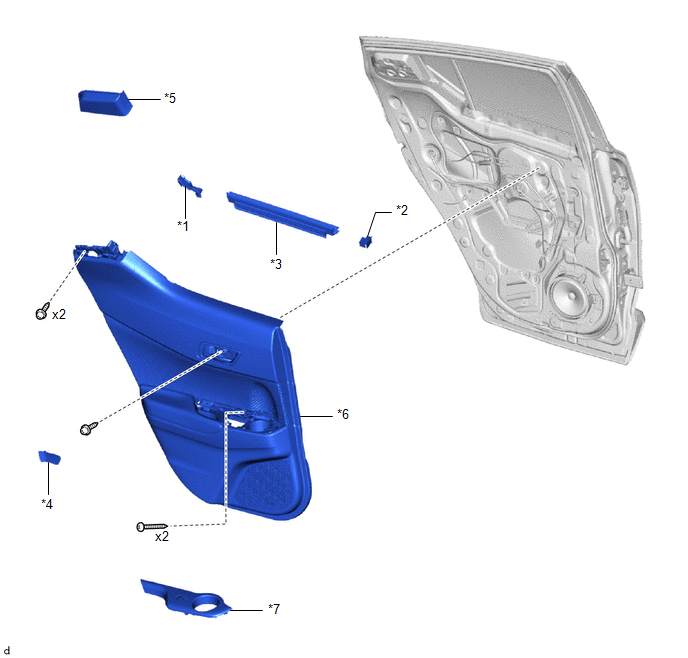

ILLUSTRATION
|
*1 |
REAR DOOR BELT REAR SEAL |
*2 |
REAR DOOR BELT SEAL |
|
*3 |
REAR DOOR GLASS INNER WEATHERSTRIP |
*4 |
REAR DOOR INSIDE HANDLE BEZEL PLUG |
|
*5 |
REAR DOOR REAR FRAME BRACKET |
*6 |
REAR DOOR TRIM BOARD SUB-ASSEMBLY |
|
*7 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL |
- |
- |

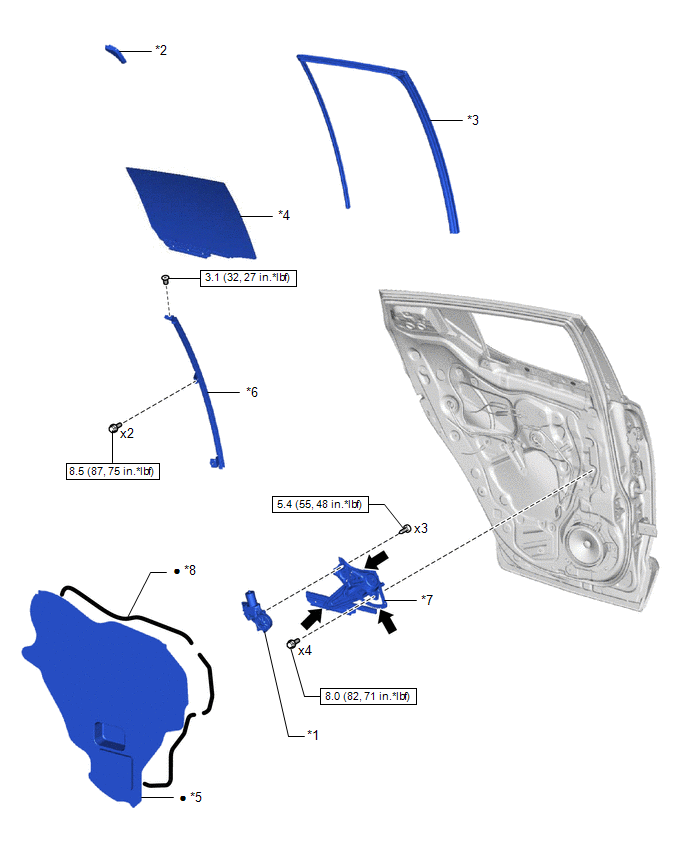

ILLUSTRATION
|
*1 |
POWER WINDOW REGULATOR MOTOR ASSEMBLY |
*2 |
REAR DOOR FRAME GARNISH |
|
*3 |
REAR DOOR GLASS RUN |
*4 |
REAR DOOR GLASS SUB-ASSEMBLY |
|
*5 |
REAR DOOR SERVICE HOLE COVER |
*6 |
REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY |
|
*7 |
REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY |
*8 |
|
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
.png) |
MP grease |
- |
- |
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration)
that must be performed after parts are removed and installed, or replaced during ...
