Toyota CH-R Service Manual: Components

COMPONENTS

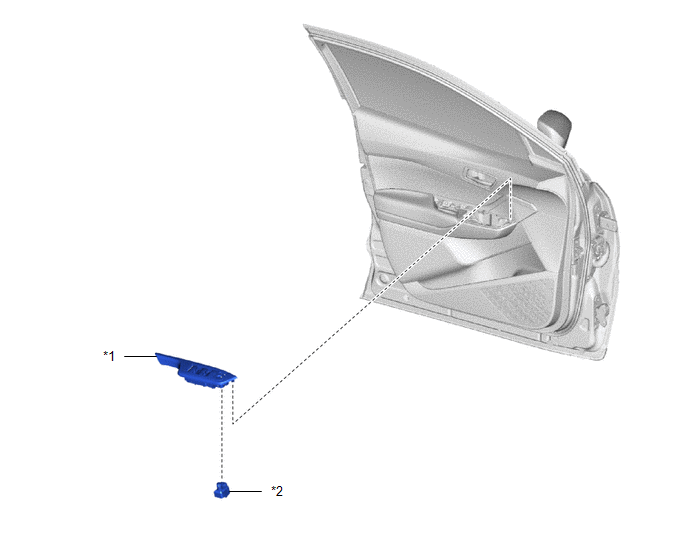

ILLUSTRATION

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

*2

OUTER MIRROR SWITCH ASSEMBLY

    Outer Mirror Switch
    ...

    Removal
    REMOVAL PROCEDURE 1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL Click here 2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (a) Using a screwdriv ...
