DISASSEMBLY
PROCEDURE

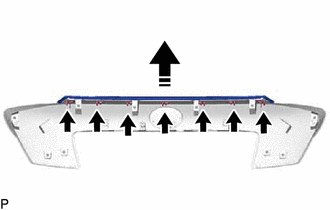

1. REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH
(a) Remove the 7 No. 1 outside moulding retainers and No. 2 back door outside garnish as shown in the illustration.
![]() |
Remove in this Direction |

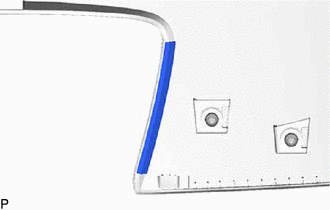

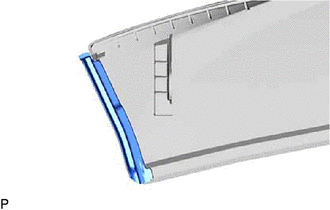

2. REMOVE BACK DOOR GARNISH SIDE PROTECTOR LH
(a) Remove the back door garnish side protector LH. |
|
3. REMOVE BACK DOOR GARNISH SIDE PROTECTOR RH
HINT:
Use the same procedure as for the LH side.

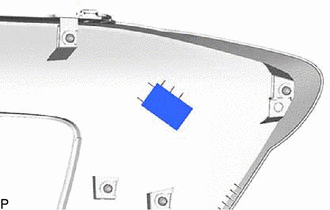

4. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR
(a) Remove the back door outside garnish protector. |
|

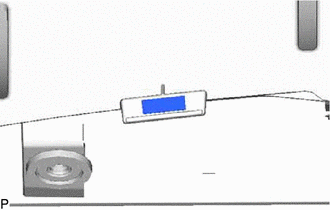

5. REMOVE BACK DOOR GARNISH MOULDING UPPER PROTECTOR
(a) Remove the back door garnish moulding upper protector. |
|

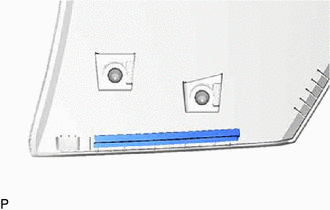

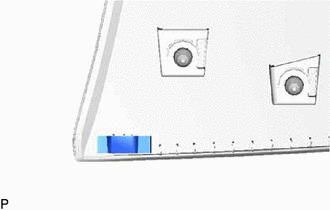

6. REMOVE BACK DOOR GARNISH MOULDING PROTECTOR LH
(a) for Back Door Outside Garnish Side:
(1) Remove the back door garnish moulding protector LH. |
|
(b) for No. 2 Back Door Outside Garnish Side:
(1) Remove the back door garnish moulding protector LH. |
|
7. REMOVE NO. 1 BACK DOOR OUTSIDE GARNISH PROTECTOR
HINT:
Using the same procedure, remove every No. 1 back door outside garnish protector.
(a) Remove the No. 1 back door outside garnish protector. |
|
8. REMOVE BACK DOOR OUTSIDE GARNISH PAD
HINT:
Using the same procedure, remove every back door outside garnish pad.
(a) Remove the back door outside garnish pad. |
|
9. REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH PROTECTOR
HINT:
Using the same procedure, remove every No. 2 back door outside garnish protector.
(a) Remove the No. 2 back door outside garnish protector. |
|
10. REMOVE BACK DOOR GARNISH MOULDING LOWER PROTECTOR
HINT:
Using the same procedure, remove every back door garnish moulding upper protector.
(a) Remove the back door garnish moulding lower protector. |
|
11. REMOVE BACK DOOR OUTSIDE GARNISH SEAL
HINT:
Using the same procedure, remove every back door outside garnish seal.
(a) Remove the back door outside garnish seal. |
|
12. REMOVE NO. 1 BACK DOOR NAME PLATE
Click here
13. REMOVE NO. 2 BACK DOOR NAME PLATE
Click here
14. REMOVE NO. 1 BACK DOOR EMBLEM
Click here
