Toyota CH-R Service Manual: Components

COMPONENTS

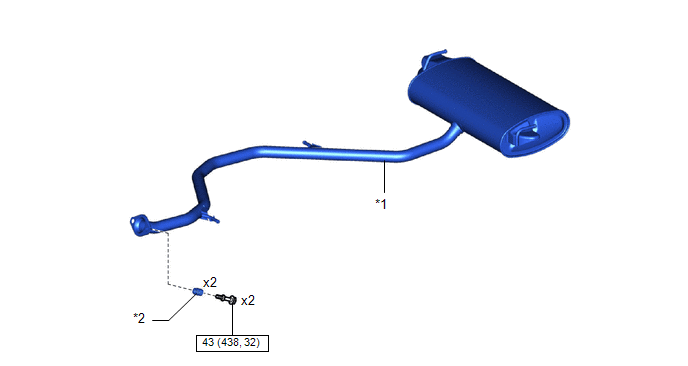

ILLUSTRATION

*1

TAIL EXHAUST PIPE ASSEMBLY

*2

COMPRESSION SPRING

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

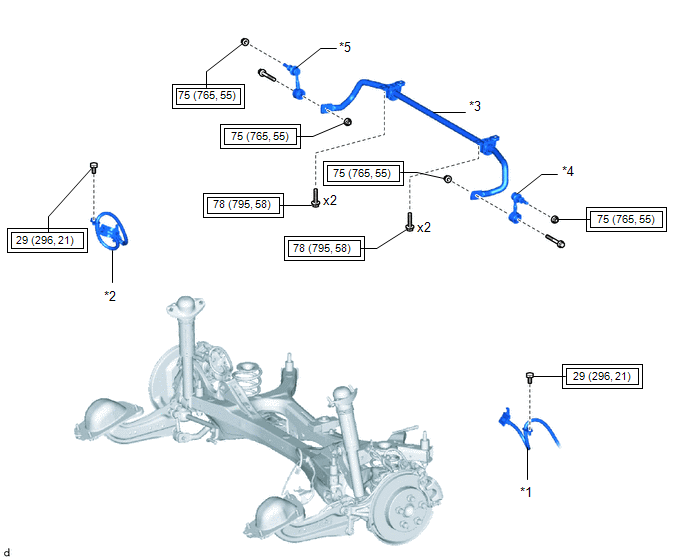

ILLUSTRATION

*1

REAR FLEXIBLE HOSE LH

*2

REAR FLEXIBLE HOSE RH

*3

REAR STABILIZER BAR

*4

REAR STABILIZER LINK ASSEMBLY LH

*5

REAR STABILIZER LINK ASSEMBLY RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

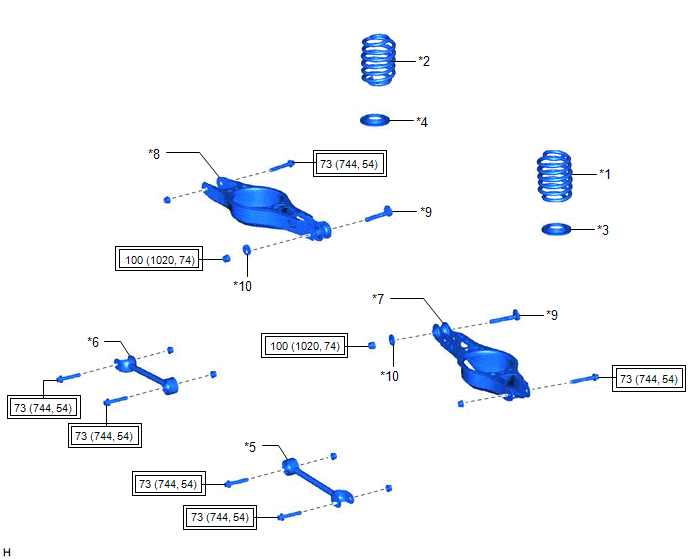

ILLUSTRATION

*1

REAR COIL SPRING LH

*2

REAR COIL SPRING RH

*3

REAR LOWER COIL SPRING INSULATOR LH

*4

REAR LOWER COIL SPRING INSULATOR RH

*5

REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

*6

REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

*7

REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

*8

REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

*9

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*10

NO. 2 CAMBER ADJUST CAM

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

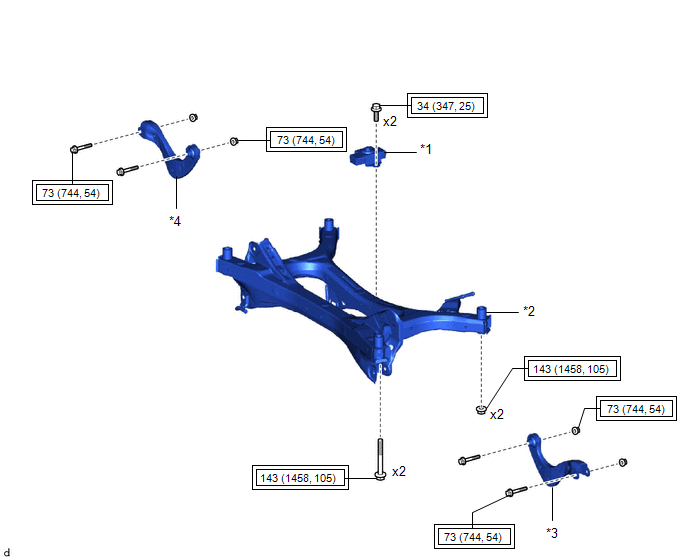

ILLUSTRATION

*1

REAR SUSPENSION MEMBER DAMPER

*2

REAR SUSPENSION MEMBER SUB-ASSEMBLY

*3

REAR UPPER CONTROL ARM ASSEMBLY LH

*4

REAR UPPER CONTROL ARM ASSEMBLY RH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

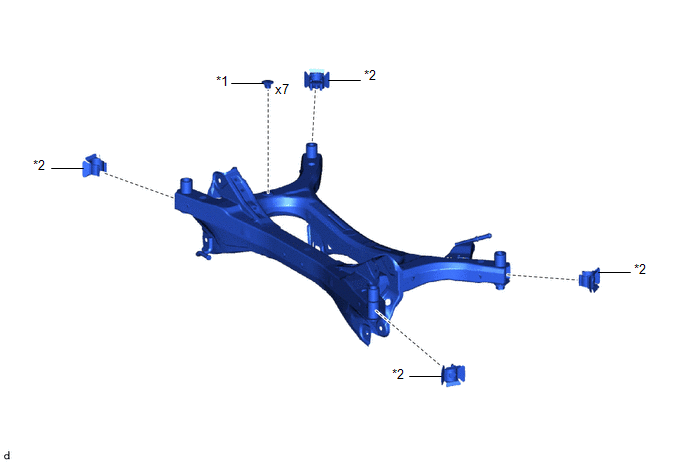

ILLUSTRATION

*1

HOLE PLUG

*2

REAR SUSPENSION MEMBER HOLE COVER

    Rear Suspension Member
    ...
