Toyota CH-R Service Manual: Components

COMPONENTS

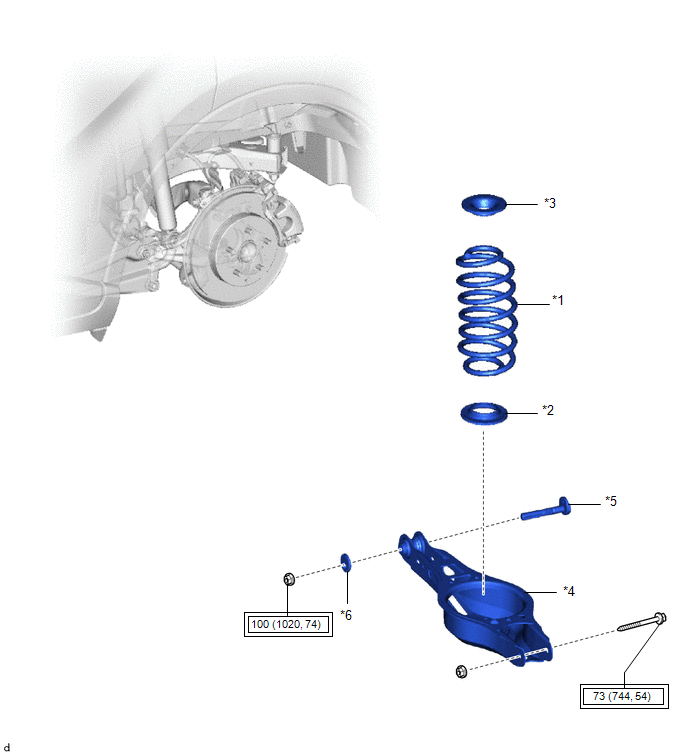

ILLUSTRATION

*1

REAR COIL SPRING

*2

REAR LOWER COIL SPRING INSULATOR

*3

REAR UPPER COIL SPRING INSULATOR

*4

REAR NO. 2 SUSPENSION ARM ASSEMBLY

*5

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*6

NO. 2 CAMBER ADJUST CAM

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

    Rear Coil Spring
    ...

    Installation
    INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. INSTALL REAR UPPER COIL S ...
