Toyota CH-R Service Manual: Components

COMPONENTS

ILLUSTRATION

*1

ENGINE WIRE

*2

FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

*3

NO. 2 ENGINE MOVING CONTROL ROD

*4

NO. 3 WATER BY-PASS HOSE

*5

NO. 5 WATER BY-PASS HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

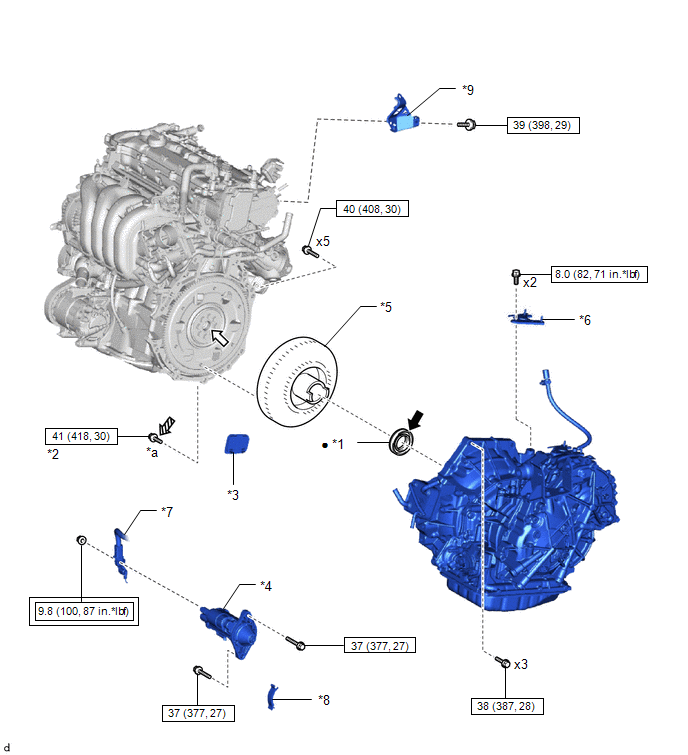

ILLUSTRATION

*1

CVT OIL PUMP TYPE T OIL SEAL

*2

DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

*3

FLYWHEEL HOUSING UNDER COVER

*4

STARTER ASSEMBLY

*5

TORQUE CONVERTER ASSEMBLY

*6

TRANSMISSION CONTROL CABLE SUPPORT

*7

WIRE HARNESS

*8

FLYWHEEL HOUSING SIDE COVER

*9

WIRE HARNESS CLAMP BRACKET

-

-

*a

BLACK COLOR: x 1

SILVER COLOR: x 5

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

Clutch spline grease

Adhesive 1324

Precoated part

-

-

ILLUSTRATION

*1

AUTOMATIC TRANSMISSION CASE COVER

*2

TRANSVERSE ENGINE ENGINE MOUNTING BRACKET

*3

NO. 1 TRANSMISSION CONTROL CABLE BRACKET

*4

OIL COOLER ELBOW SUB-ASSEMBLY

*5

STRAIGHT SCREW PLUG

*6

TUBE CONNECTOR

*7

WIRE HARNESS CLAMP BRACKET

*8

NO. 1 TRANSMISSION OIL COOLER HOSE

*9

NO. 2 TRANSMISSION OIL COOLER HOSE

*10

UNION BOLT

*11

NO. 1 BREATHER PLUG (CVT)

*12

BREATHER PLUG HOSE

*13

NO. 2 BREATHER PLUG (CVT)

*14

O-RING

*15

GASKET

*16

WATER BY-PASS HOSE CLAMP

*17

WATER HOSE CLAMP BRACKET

*18

CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

    Continuously Variable Transaxle Assembly(when Not Using The Engine Support Bridge)
    ...

    Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during th ...
