Toyota CH-R Service Manual: Relay
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT MIRROR CONTROL RELAY
(a) Check the resistance.
|

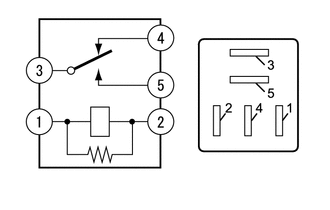

(1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the mirror control relay. |
|
AUTO Power Retract Mirrors do not operate
DESCRIPTION
The outer mirror switch assembly sends a mirror auto retract/return signal to
the main body ECU (multiplex network body ECU) when the retractable outer mirror
switch on the outer mirr ...
